6VV6SS-10B-R2B
48 Port multibeam ultra-high capacity antenna, 6 beams for 1695-2690 MHz, 6 beams for 3300-4000 MHz, 4 ports for each beam,1 RET per band
Features and benefits
- 3.5 GHz beams aligned with mid band beams for use with 5G NSA or SA
- All beams support 4T4R service or 2T2R service for 2 licensed bands
- Ultra-high capacity antenna provides increased throughput for special events or very high traffic locations
- Provides higher capacity than single radio massive MIMO solution
- Multibeam antenna with 6x MB beams and 6x 3GHz beams
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 24 |
| RF Connector Quantity, total | 48 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 1998 mm | 78.661 in |
| Net Weight, antenna only | 89 kg | 196.211 lb |

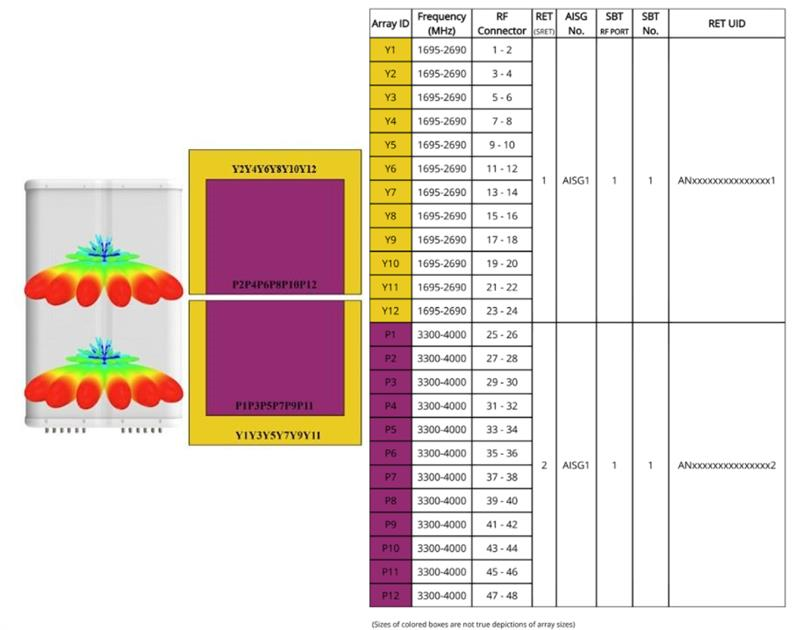

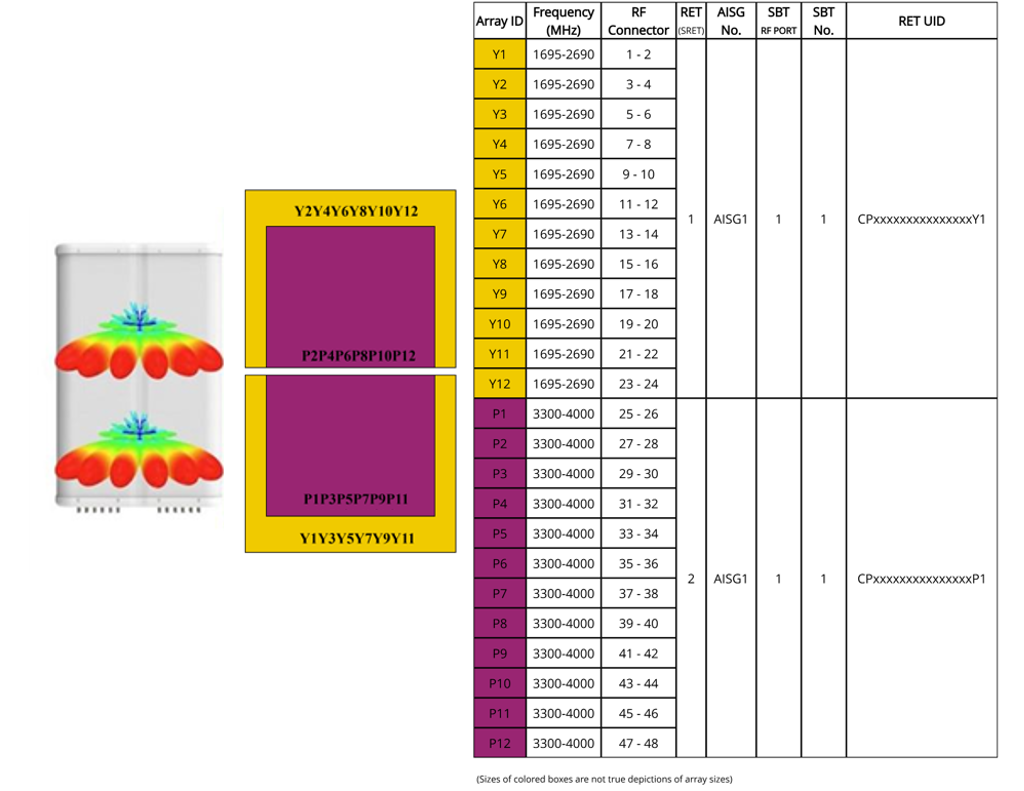

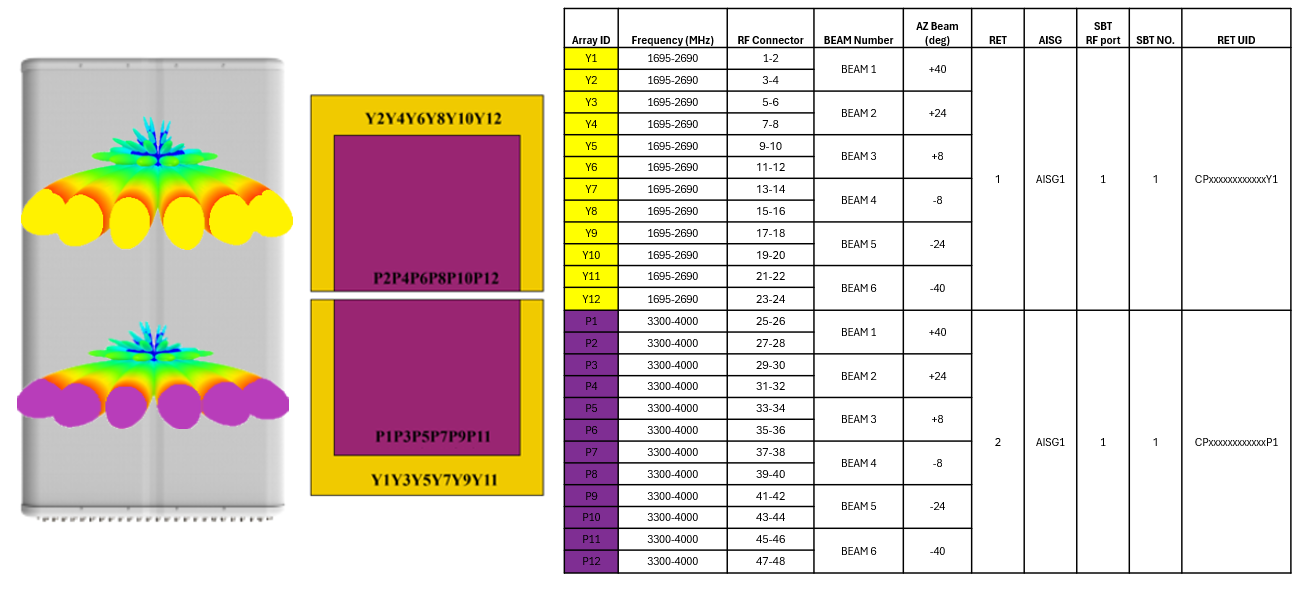

Array layout
| Click on image to enlarge. |

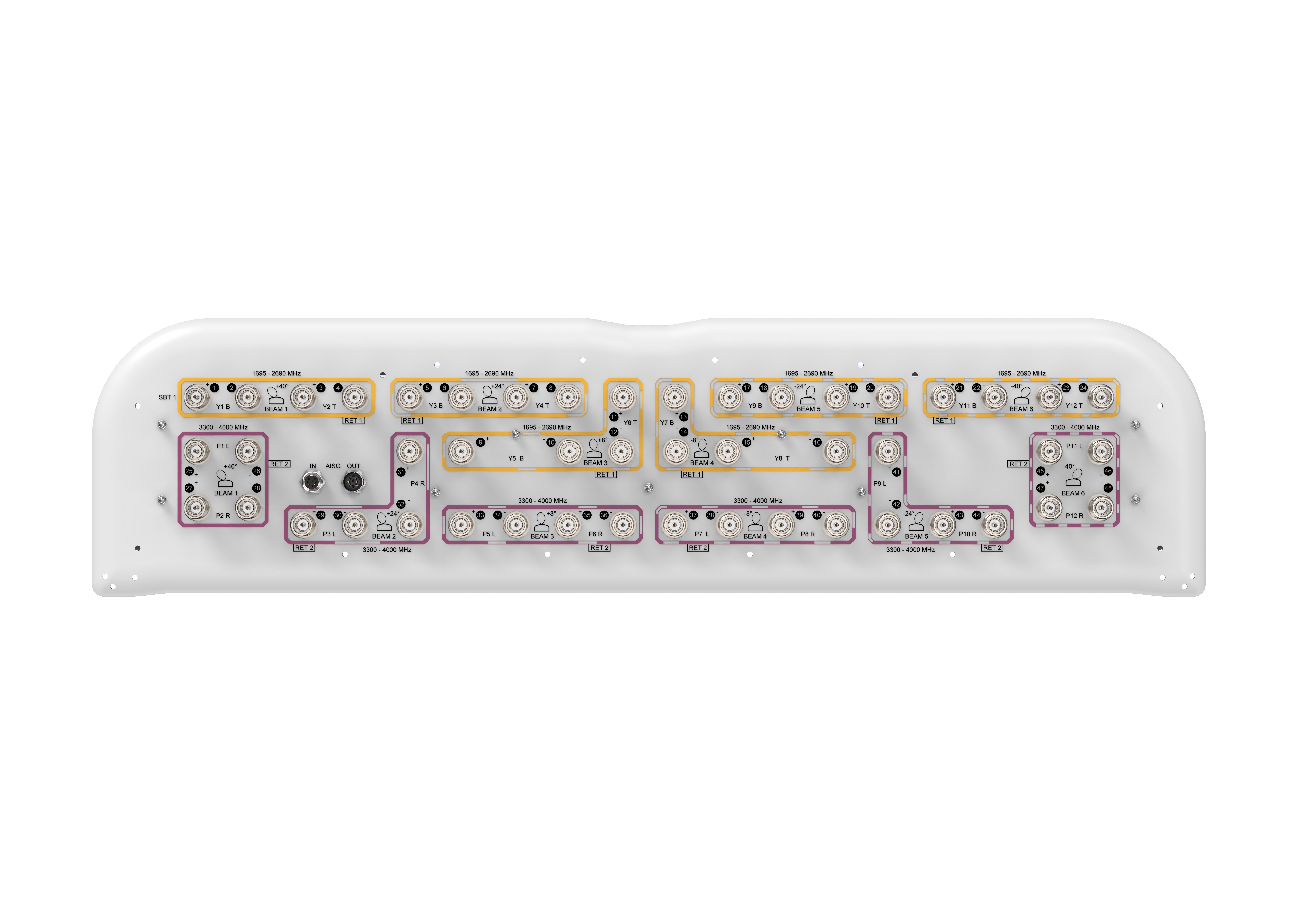

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,880 W |
Electrical specifications
| Y1-Y12 | Y1-Y12 | Y1-Y12 | P1-P12 | P1-P12 | |
| Frequency Band, MHz | 1695–1990 | 1920–2180 | 2300–2690 | 3300–3700 | 3700–4000 |
| RF Port | 1-24 | 1-24 | 1-24 | 25-48 | 25-48 |
| Gain, dBi | 21.5 | 22.0 | 22.4 | 19.6 | 19.7 |
| Beam Centers, Horizontal, degrees | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 |
| Beamwidth, Horizontal, degrees | 12 | 11 | 9 | 12 | 11 |
| Beamwidth, Vertical, degrees | 11.6 | 10.6 | 8.7 | 14 | 12.8 |
| Beam Tilt, degrees | 4–10 | 4–10 | 4–10 | 4–10 | 4–10 |
| USLS (First Lobe), dB | 10 | 10 | 10 | 10 | 10 |
| Front-to-Back Ratio at 180°, dB | 35 | 35 | 30 | 27 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 19 | 19 | 18 | 15 | 15 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -145 | -145 |
| Input Power per Port, maximum, watts | 120 | 120 | 120 | 40 | 40 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,480.0 N @ 150 km/h (557.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 756.0 N @ 150 km/h (170.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,480.0 N @ 150 km/h (557.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 561 mm | 22.087 in |
| Length, packed | 2264 mm | 89.134 in |
| Weight, gross | 129 kg | 284.396 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 24 |
| RF Connector Quantity, total | 48 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 1998 mm | 78.661 in |
| Net Weight, antenna only | 89 kg | 196.211 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,880 W |
Electrical specifications
| Y1-Y12 | Y1-Y12 | Y1-Y12 | P1-P12 | P1-P12 | |
| Frequency Band, MHz | 1695–1990 | 1920–2180 | 2300–2690 | 3300–3700 | 3700–4000 |
| RF Port | 1-24 | 1-24 | 1-24 | 25-48 | 25-48 |
| Gain, dBi | 21.5 | 22.0 | 22.4 | 19.6 | 19.7 |
| Beam Centers, Horizontal, degrees | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 |
| Beamwidth, Horizontal, degrees | 12 | 11 | 9 | 12 | 11 |
| Beamwidth, Vertical, degrees | 11.6 | 10.6 | 8.7 | 14 | 12.8 |
| Beam Tilt, degrees | 4–10 | 4–10 | 4–10 | 4–10 | 4–10 |
| USLS (First Lobe), dB | 10 | 10 | 10 | 10 | 10 |
| Front-to-Back Ratio at 180°, dB | 35 | 35 | 30 | 27 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 19 | 19 | 18 | 15 | 15 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -145 | -145 |
| Input Power per Port, maximum, watts | 120 | 120 | 120 | 40 | 40 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,480.0 N @ 150 km/h (557.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 756.0 N @ 150 km/h (170.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,480.0 N @ 150 km/h (557.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 561 mm | 22.087 in |
| Length, packed | 2264 mm | 89.134 in |
| Weight, gross | 129 kg | 284.396 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
