WB-LB12-3

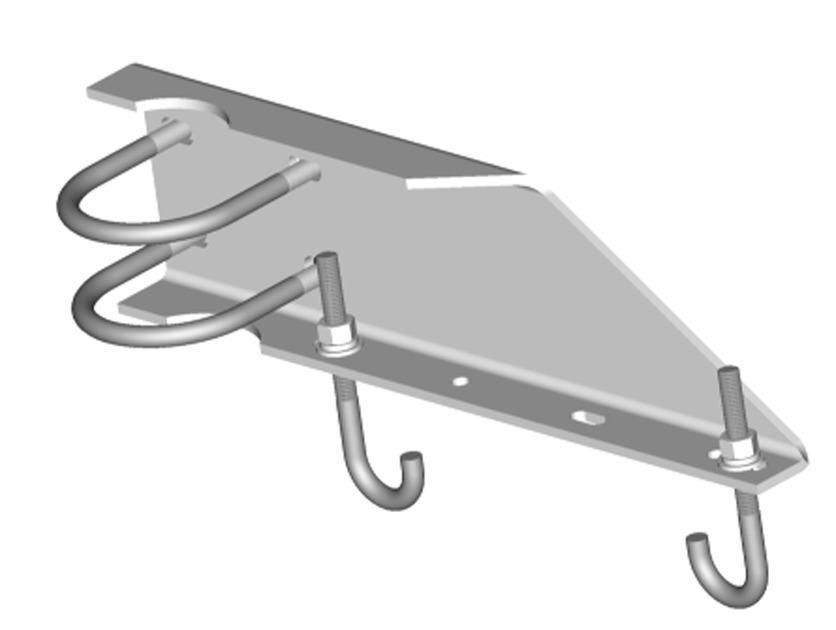

Waveguide Bridge Support Bracket, 12 in wide for 3-1/2 in OD legs

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Waveguide Bridge Support Brackets

Product classification

Product Type Support bracket

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 12
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 50.8 mm | 2 in
Width 508 mm | 20 in
Length 152.4 mm | 6 in

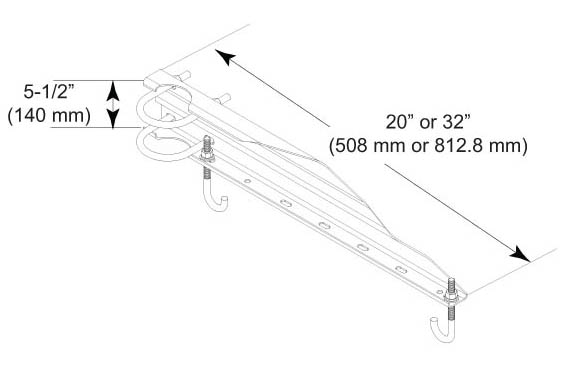

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Brackets | Hardware
Packaging quantity 1
Weight, net 5.4 kg | 11.905 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Support bracket

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 12
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 50.8 mm | 2 in
Width 508 mm | 20 in
Length 152.4 mm | 6 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Brackets | Hardware
Packaging quantity 1
Weight, net 5.4 kg | 11.905 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

Waveguide Bridge Support Bracket, 12 in
