WB-CS24-3

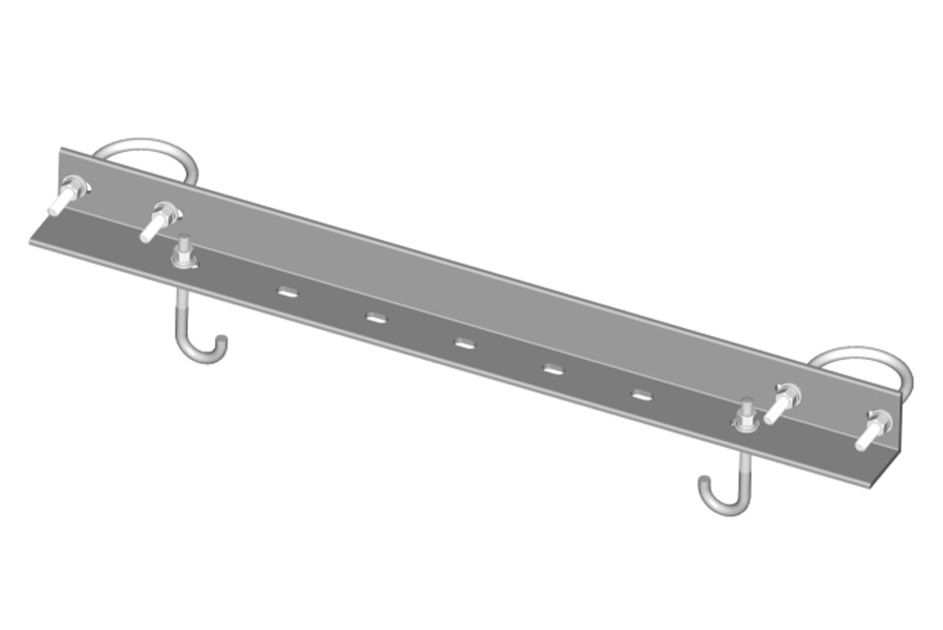

Safety Grated Channel Support, 24 in wide for 3-1/2 in OD pipe
Specifications
Product classification
| Product Type | Support bracket |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 812.8 mm | 32 in |
| Length | 101.6 mm | 4 in |
Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Channel support bracket | Hardware |
| Packaging quantity | 1 |
| Weight, net | 8.2 kg | 18.078 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Support bracket |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 812.8 mm | 32 in |
| Length | 101.6 mm | 4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Channel support bracket | Hardware |
| Packaging quantity | 1 |
| Weight, net | 8.2 kg | 18.078 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
