WB-BS

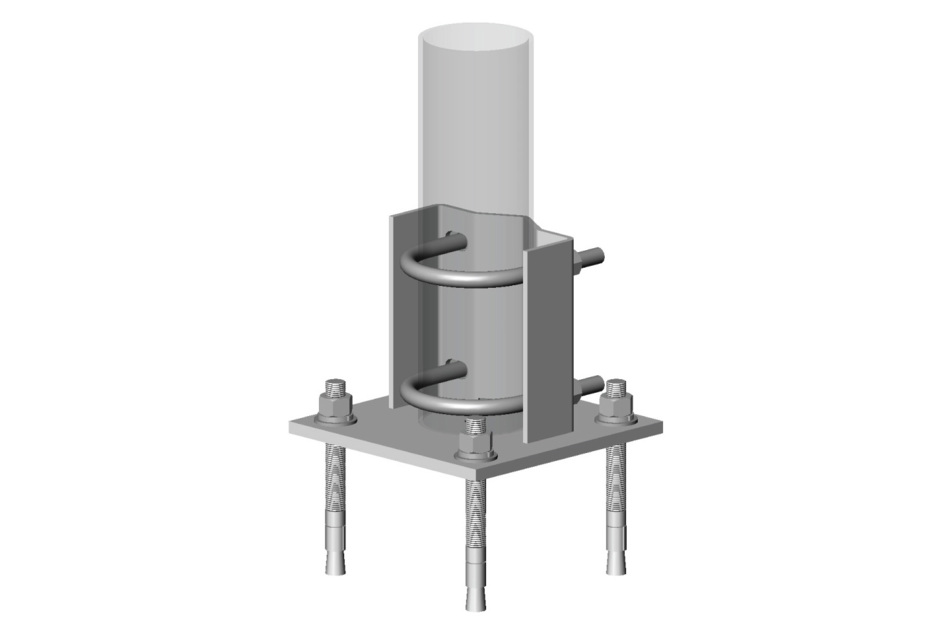

Base Shoe for 3-1/2 in OD pipe, hardware included
Specifications
Product classification
| Product Type | Shoe |
General specifications
| Application | Base shoe |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 203.2 mm | 8 in |

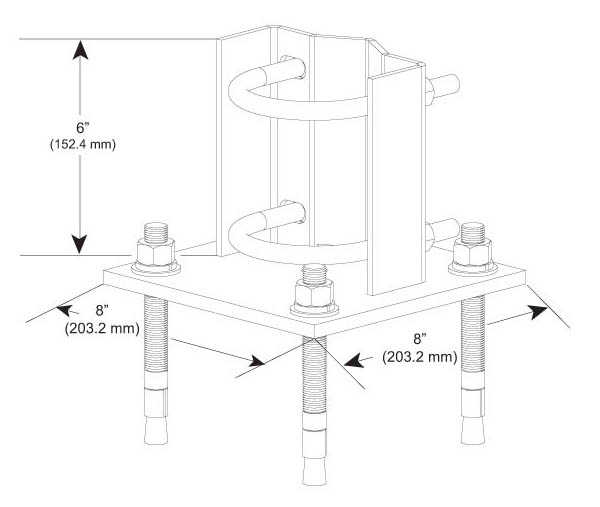

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 8.7 kg | 19.18 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Shoe |
General specifications
| Application | Base shoe |
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 8.7 kg | 19.18 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
