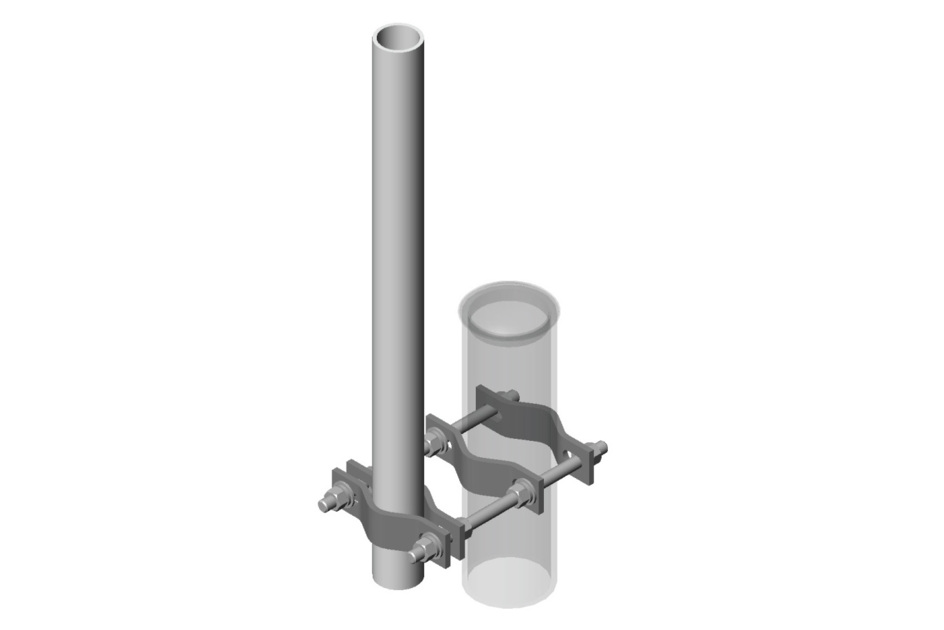

GP-S24
GPS Antenna Mount
Specifications
Product classification
| Product Type | Wall mount kit |
General specifications
| Application | Pipe-to-pipe |
| Mounting | Pipe, 38.1–88.9 mm (1-1/2 in to 3-1/2 in) OD |
| Pipe, quantity | 1 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 101.6 mm | 4 in |
| Length | 609.6 mm | 24 in |
| Pipe Length | 609.6 mm | 24 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |

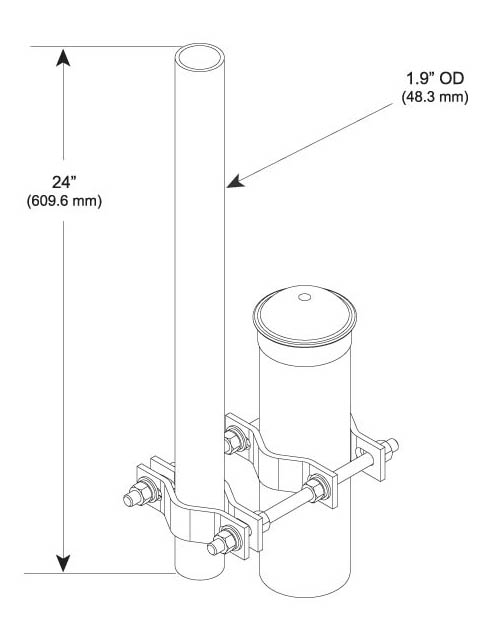

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 4.5 kg | 9.921 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wall mount kit |
General specifications
| Application | Pipe-to-pipe |
| Mounting | Pipe, 38.1–88.9 mm (1-1/2 in to 3-1/2 in) OD |
| Pipe, quantity | 1 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 101.6 mm | 4 in |
| Length | 609.6 mm | 24 in |
| Pipe Length | 609.6 mm | 24 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 4.5 kg | 9.921 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
