WT-HRM2-B

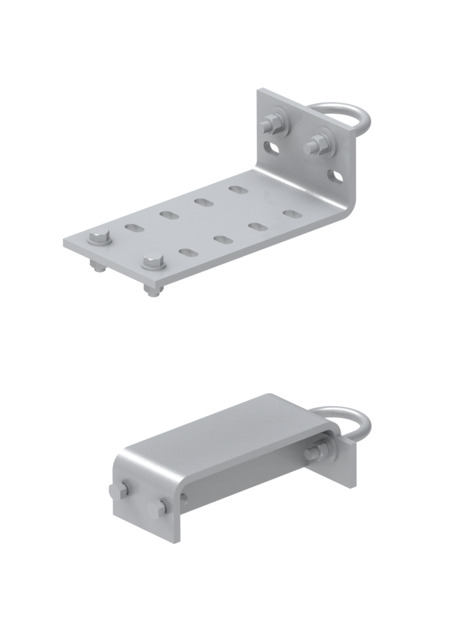

Water Tower Top Rail Mount for 2-3/8 in OD mounting pipe, plain end pipe not included

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
WT-HRM2-B

Product classification

Product Type Water tower mount

General specifications

Mounting Handrail | Toe board
Pipe, quantity 0

Dimensions

Height 889 mm | 35 in
Width 203.2 mm | 8 in
Length 609.6 mm | 24 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Stand-off Distance 228.6 mm | 9 in

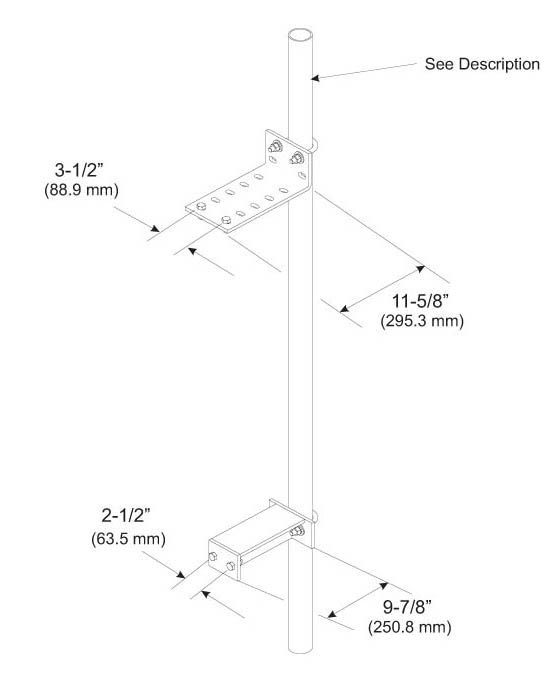

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Hardware | Mount
Packaging quantity 1
Weight, net 9.299 kg | 20.5 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Water tower mount

General specifications

Mounting Handrail | Toe board
Pipe, quantity 0

Dimensions

Height 889 mm | 35 in
Width 203.2 mm | 8 in
Length 609.6 mm | 24 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Stand-off Distance 228.6 mm | 9 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Hardware | Mount
Packaging quantity 1
Weight, net 9.299 kg | 20.5 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

Hand Rail Mount
