VSRC-TL-B
Base product: MOUNT-REINFORCEMENT-KITS

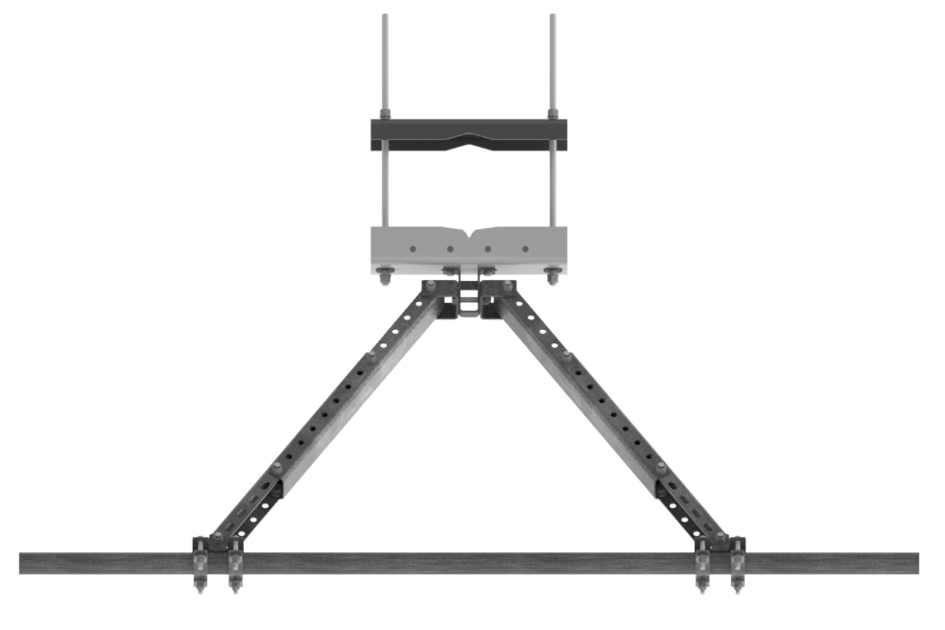

Interlocking Channel V-Stabilizer™ for Tower Legs 8-16in OD- Adjustable from 34.5” to 57.5” Plus Vertical & Horizontal Adjustments
Specifications
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Length | 1460.500 mm | 57.5 in |
| Mounting Diameter, maximum | 406.400 mm | 16 in |
| Mounting Diameter, minimum | 203.200 mm | 8 in |
| Stand-off Distance, adjustable | 34.5–57.5 in | 87.6–146 cm |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Legs |
| Packaging quantity | 1 |
| Weight, net | 61.326 kg | 135.2 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
