VSR-TL-B
Base product: MOUNT-REINFORCEMENT-KITS

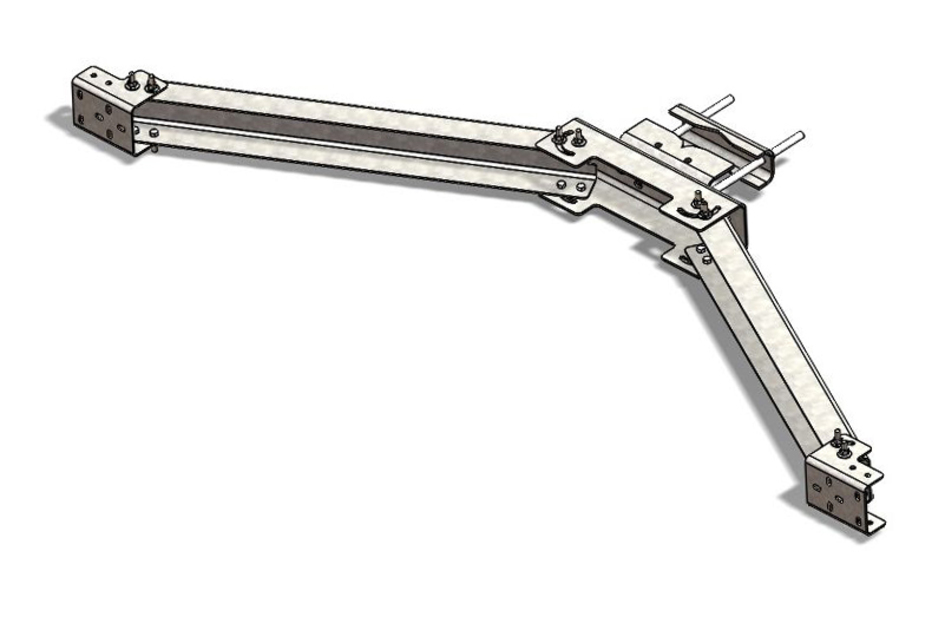

V-Stabilizer™ for a Tower, large leg size (8–16 in)
Specifications
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Face Width | 4.42 m | 14.5 ft |
| Length | 1206.500 mm | 47.5 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Legs |
| Packaging quantity | 1 |
| Weight, net | 67.086 kg | 147.9 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Face Width | 4.42 m | 14.5 ft |
| Length | 1206.500 mm | 47.5 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Legs |
| Packaging quantity | 1 |
| Weight, net | 67.086 kg | 147.9 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
