SFG23HDX-10-3-96
Base product: G23-SERIES-TOWER

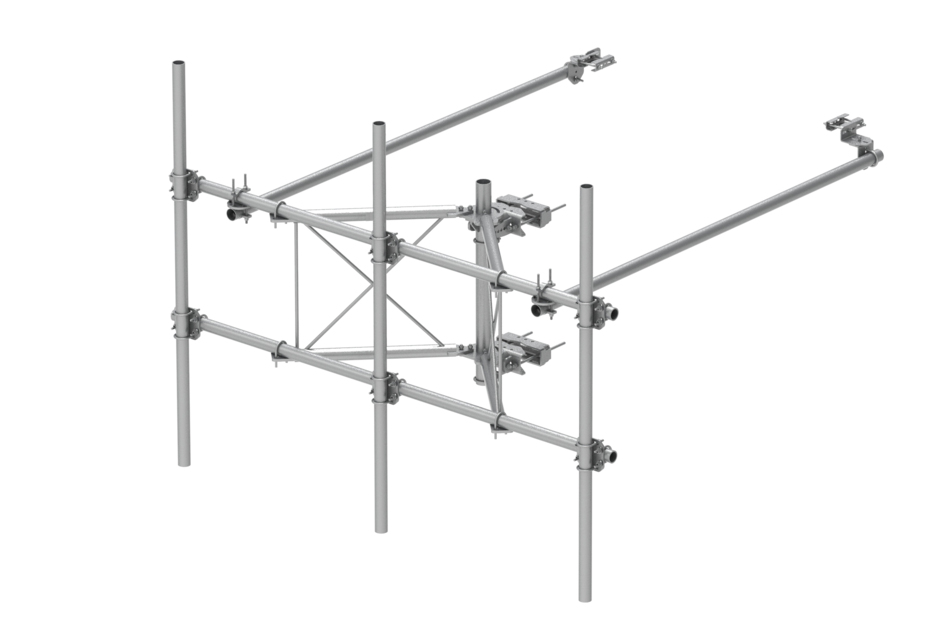

G23HDX High Capacity Sector Frame, 10.5 ft x 2.88 in OD face pipes, includes three 2.88 OD x 96 in antenna pipes
Specifications
Product classification
| Product Type | High capacity Tower sector frame |
| Product Series | G2 |
| Ordering Note | NSTD445 Compliant |
General specifications
| Application | 4G LTE antenna/radio mount |
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Patent Number | Patent pending |
| Pipe, quantity | 3 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.2 m | 10.5 ft |
| Width | 3200.400 mm | 126 in |
| Pipe Length | 2438.4 mm | 96 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1066.800 mm | 42 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes (3) | Stiff arms (2) | Tower attachment |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
