SFG2393-LLHK
Base product: MOUNT-ACCESSORIES

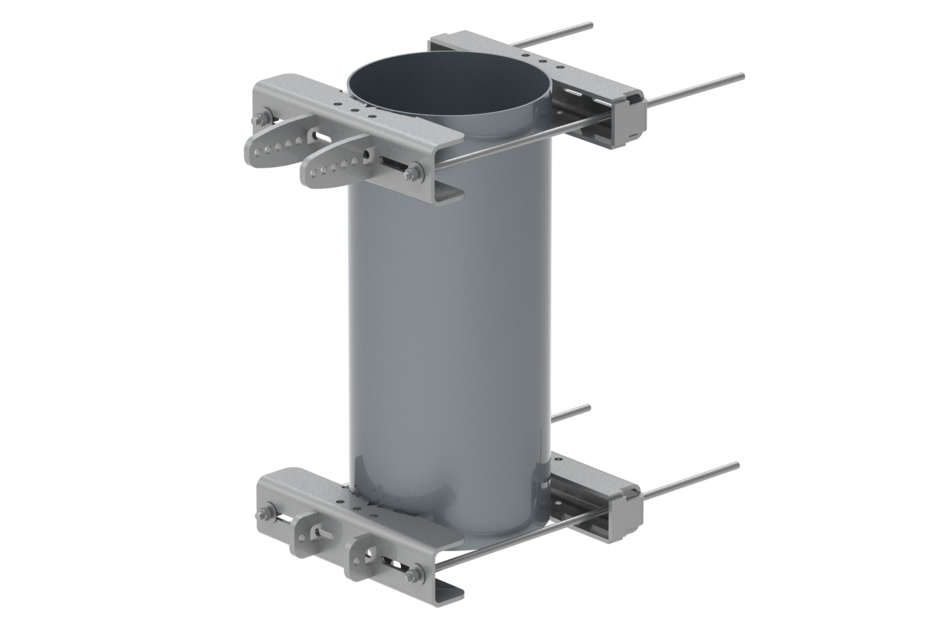

Large Tower Leg Mounting Kit for SFG2x Sector Frame Series. For Tower legs 8" to 16"
Specifications
Product classification
| Product Type | Saddle mount |
| Product Series | G2 |
General specifications
| Mounting | Round and angle legs |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 127.000 mm | 5 in |
| Width | 551.180 mm | 21.7 in |
| Mounting Diameter, maximum | 406.400 mm | 16 in |
| Mounting Diameter, minimum | 203.200 mm | 8 in |
| Pipe Outer Diameter | 0.000 mm | 0 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Saddle mount |
| Packaging quantity | 1 |
| Weight, net | 58.831 kg | 129.7 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Saddle mount |
| Product Series | G2 |
General specifications
| Mounting | Round and angle legs |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 127.000 mm | 5 in |
| Width | 551.180 mm | 21.7 in |
| Mounting Diameter, maximum | 406.400 mm | 16 in |
| Mounting Diameter, minimum | 203.200 mm | 8 in |
| Pipe Outer Diameter | 0.000 mm | 0 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Saddle mount |
| Packaging quantity | 1 |
| Weight, net | 58.831 kg | 129.7 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
