SFG22HD-12-4-96
Base product: G22-SERIES-TOWER

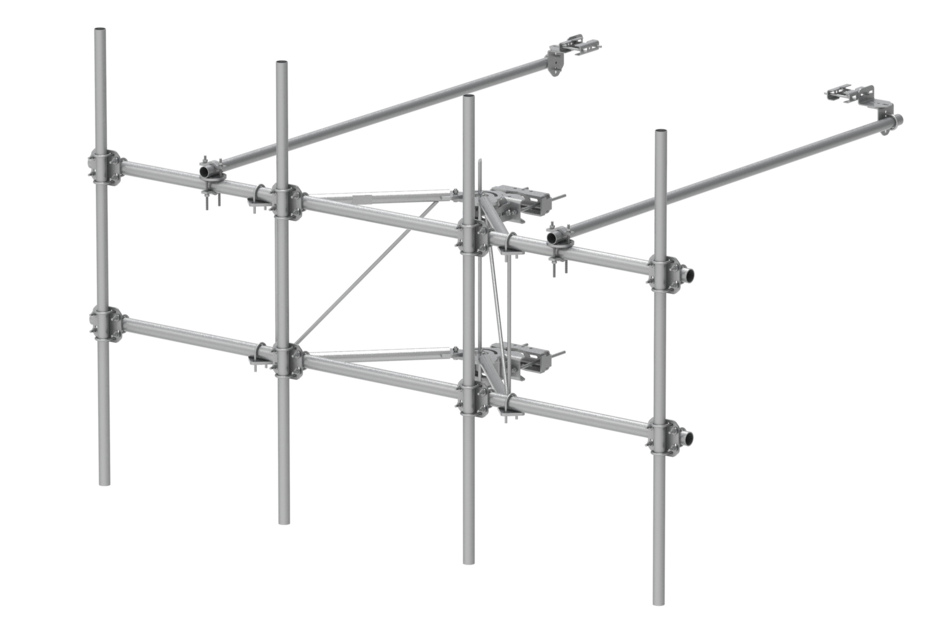

G22HD High Capacity Sector Frame with 2 7/8in OD x 12.5ft face. Includes four 2 3/8in OD x 96in antenna pipes.
Specifications
Product classification
| Product Type | High capacity Tower sector frame |
| Product Series | G2 |
| Ordering Note | NSTD445 Compliant |
General specifications
| Application | 4G LTE antenna/radio mount |
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Patent Number | Patent pending |
| Pipe, quantity | 4 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.810 m | 12.5 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 1041.400 mm | 41 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes (4) | Stiff arms (2) | Tower attachment |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
