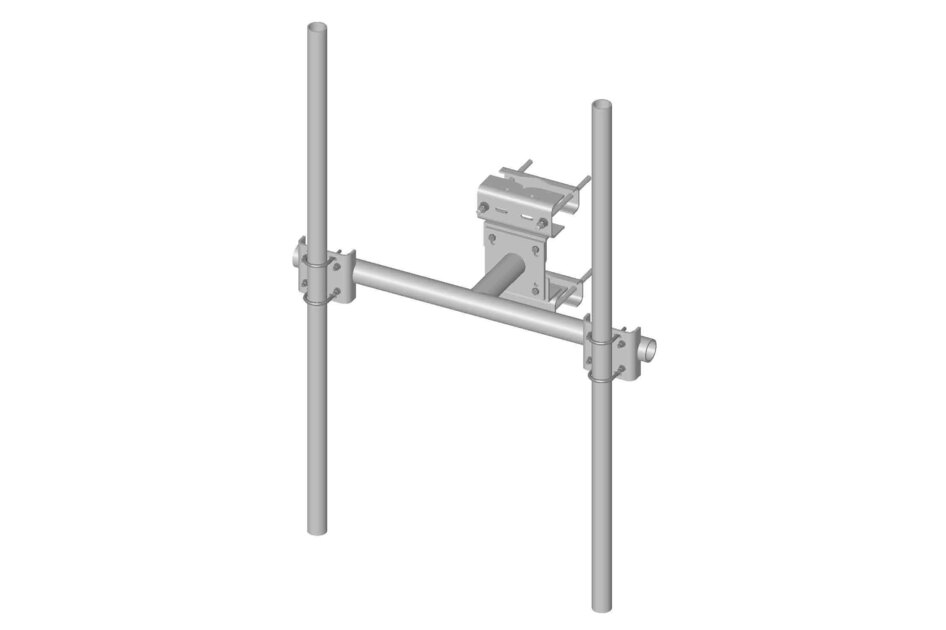

SF-DPM3-84
Co-location Dual Pipe Mount Kit; includes (2) 2-7/8 in OD x 84 in pipes
Specifications
Product classification
| Product Type | Co-location dual pipe mount kit |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Note | Two 72 in x 8 in panel antenna per sector |
| Pipe, quantity | 2 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2133.6 mm | 84 in |
| Face Width | 1.463 m | 4.8 ft |
| Width | 1447.8 mm | 57 in |
| Length | 0.396 m | 1.3 ft |
| Pipe Length | 2133.6 mm | 84 in |
| Face Support Pipe Diameter | 88.9 mm | 3.5 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
| Stand-off Distance | 391.16 mm | 15.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Clamps | Frame | Pipe mounts | Pipes | Saddle mounts |
| Packaging quantity | 1 |
| Weight, net | 133.8 kg | 294.978 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
