MD-S4
Base product: MOUNT-ACCESSORIES

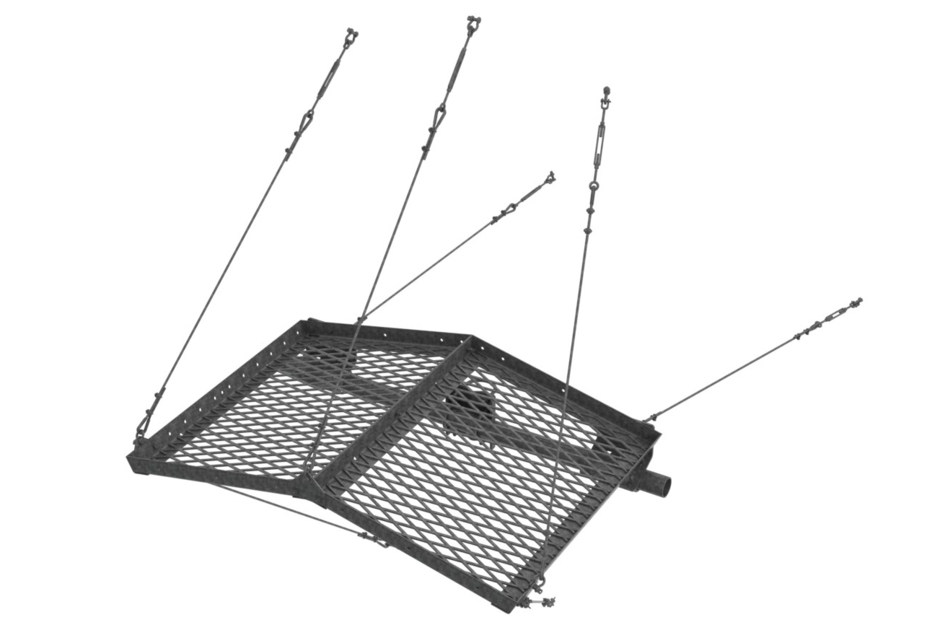

Microwave Antenna Ice Shield for 4 ft antennas
Specifications
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
| Note | Custom lightweight or additional sizes available |
Dimensions
| Height | 76.200 mm | 3 in |
| Width | 1828.800 mm | 72 in |
| Length | 1219.200 mm | 48 in |
| Pipe Outer Diameter | 88.900 mm | 3.5 in |

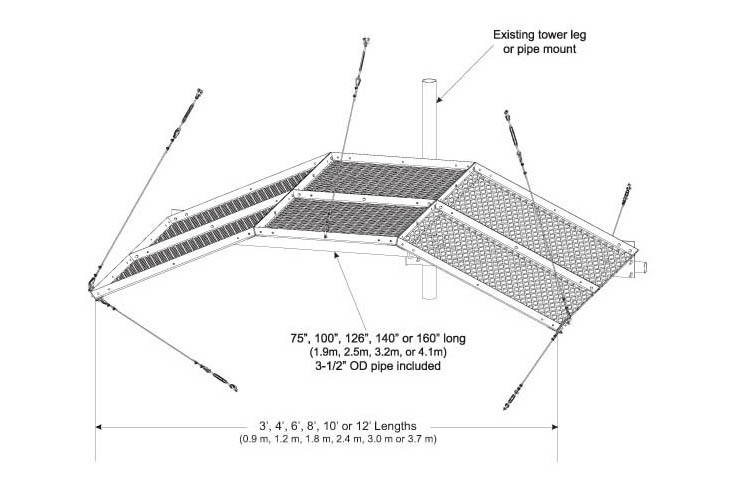

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Ice shield |
| Packaging quantity | 1 |
| Weight, net | 118.5 lb | 261.247 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
| Note | Custom lightweight or additional sizes available |
Dimensions
| Height | 76.200 mm | 3 in |
| Width | 1828.800 mm | 72 in |
| Length | 1219.200 mm | 48 in |
| Pipe Outer Diameter | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Ice shield |
| Packaging quantity | 1 |
| Weight, net | 118.5 lb | 261.247 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
