RM-SM190-60
Base product: TRIPOD-MOUNTS

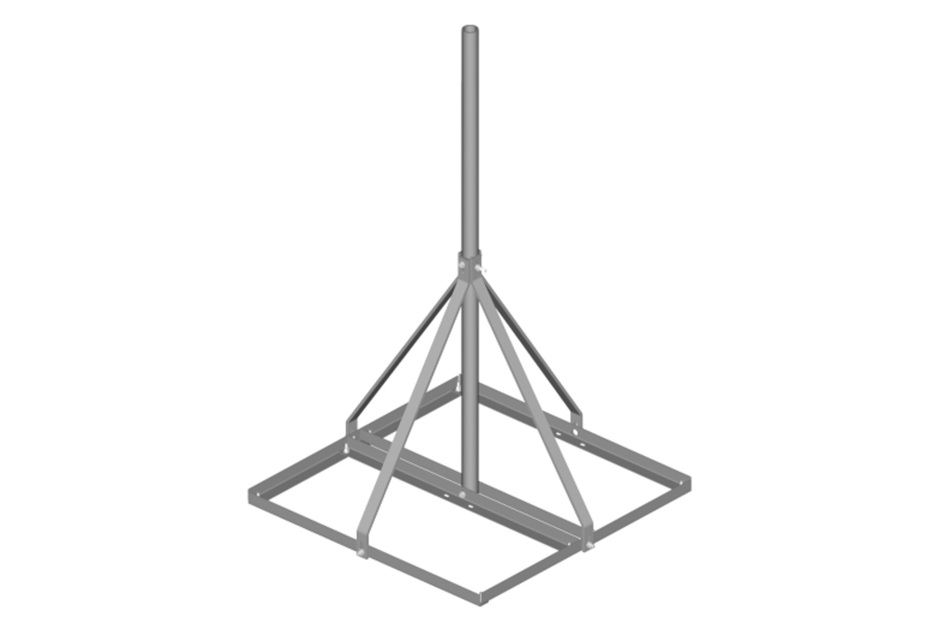

Non-Penetrating Roof Mount
Specifications
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 914.4 mm | 36 in |
| Length | 0.914 m | 3 ft |
| Pipe Length | 1524 mm | 60 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |
Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Ballast tray | Mast | Supports |
| Packaging quantity | 1 |
| Weight, net | 27.2 kg | 59.966 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 914.4 mm | 36 in |
| Length | 0.914 m | 3 ft |
| Pipe Length | 1524 mm | 60 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Ballast tray | Mast | Supports |
| Packaging quantity | 1 |
| Weight, net | 27.2 kg | 59.966 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
