RF-NL10-B
Base product: RF-SERIES-BALLAST-FRAMES

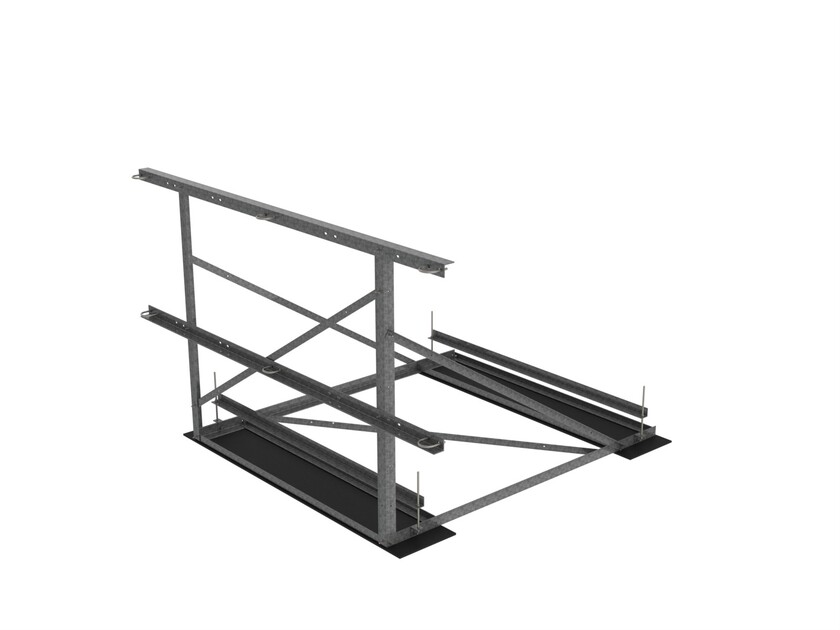

Non-Penetrating Roof Frame, 10 ft face, pipe not included
Specifications
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Note | Four 96 in x 18 in panel antennas per sector |
| Pipe, quantity | 0 |
Dimensions
| Height | 1905 mm | 75 in |
| Face Width | 3.2 m | 10.5 ft |
| Width | 3200.4 mm | 126 in |
| Length | 2.53 m | 8.3 ft |
| Pipe Length | 0.000 mm | 0 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Rubber mats, with or without pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 227 kg | 500.449 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Note | Four 96 in x 18 in panel antennas per sector |
| Pipe, quantity | 0 |
Dimensions
| Height | 1905 mm | 75 in |
| Face Width | 3.2 m | 10.5 ft |
| Width | 3200.4 mm | 126 in |
| Length | 2.53 m | 8.3 ft |
| Pipe Length | 0.000 mm | 0 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Rubber mats, with or without pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 227 kg | 500.449 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
