RF-MW8-B
Base product: RF-SERIES-BALLAST-FRAMES

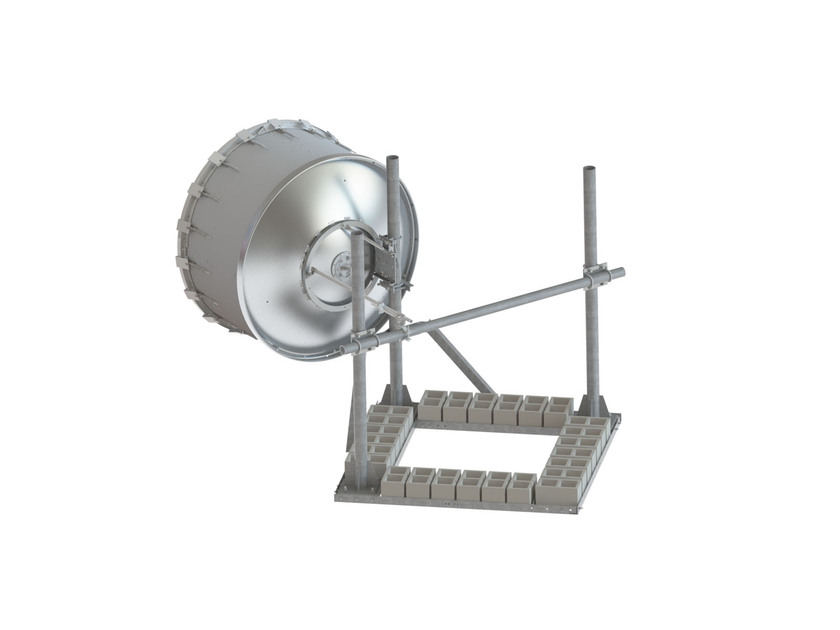

Roof-top Microwave Non-penetrating Ballast Mount - three 4-1/2" OD x 8' Supports w 3.5" OD Strut Support Member
Specifications
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Note | One 8 ft microwave antenna with stiff arm |
| Pipe, quantity | 3 |
Dimensions
| Height | 2519.68 mm | 99.2 in |
| Face Width | 2.134 m | 7 ft |
| Width | 2209.8 mm | 87 in |
| Length | 2.225 m | 7.3 ft |
| Pipe Length | 2514.600 mm | 99 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 451.8 kg | 996.047 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Note | One 8 ft microwave antenna with stiff arm |
| Pipe, quantity | 3 |
Dimensions
| Height | 2519.68 mm | 99.2 in |
| Face Width | 2.134 m | 7 ft |
| Width | 2209.8 mm | 87 in |
| Length | 2.225 m | 7.3 ft |
| Pipe Length | 2514.600 mm | 99 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 451.8 kg | 996.047 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
