MTC3169SBNHH
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

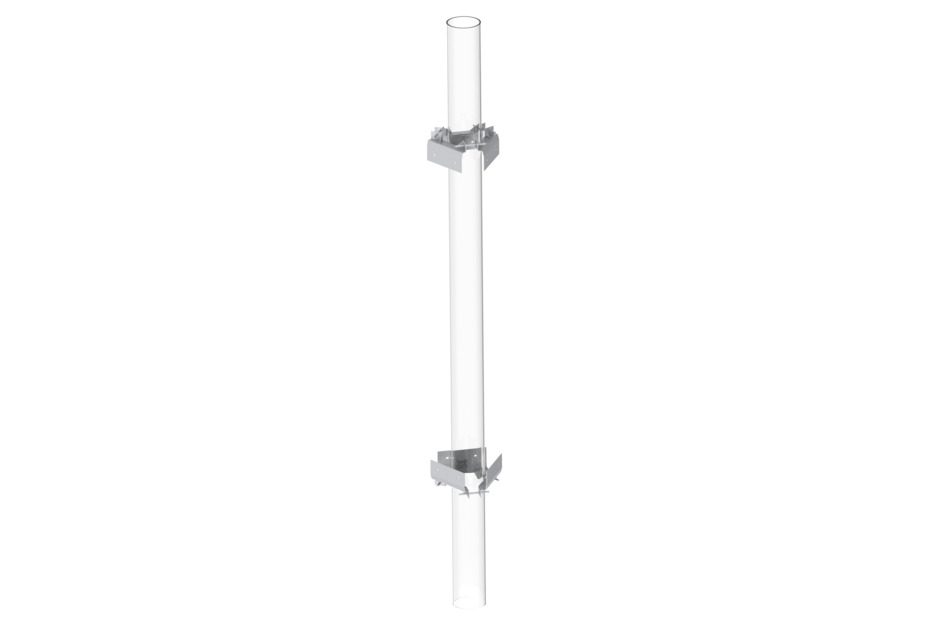

SBNHH Antenna Mount for Concealment, Tripod, and Flagpole applications. Mounts to Poles 4.5" to 8.63" OD
Specifications
Product classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 219.202 mm | 8.63 in |
| Mounting Diameter, minimum | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 6.56 kg | 14.462 lb |
Product classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 219.202 mm | 8.63 in |
| Mounting Diameter, minimum | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 6.56 kg | 14.462 lb |
