MT-416
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

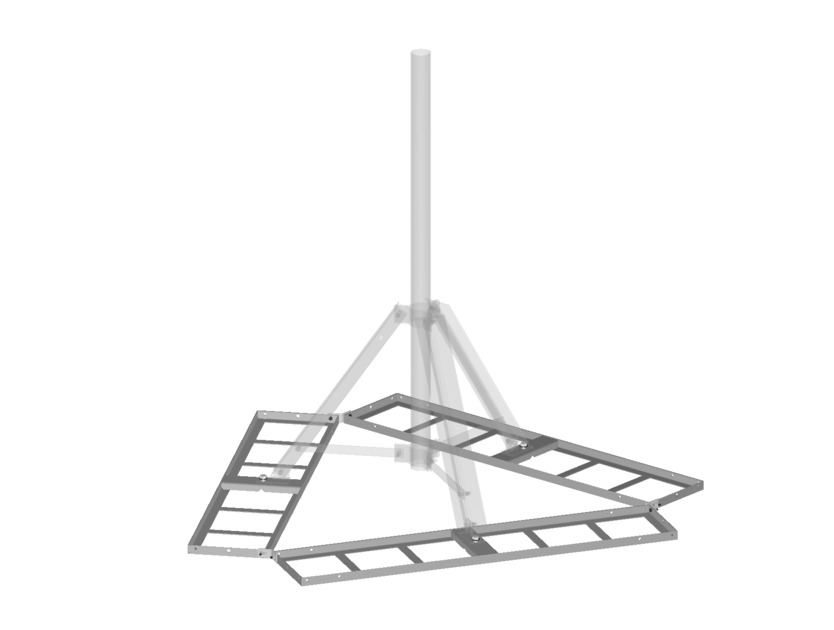

Non-Penetrating Roof Sled
Specifications
Product classification
| Product Type | Tripod mount component |
| Ordering Note | NSTD445 Compliant |
General specifications
| Mounting | Non-penetrating |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 2209.8 mm | 87 in |
| Length | 2.225 m | 7.3 ft |

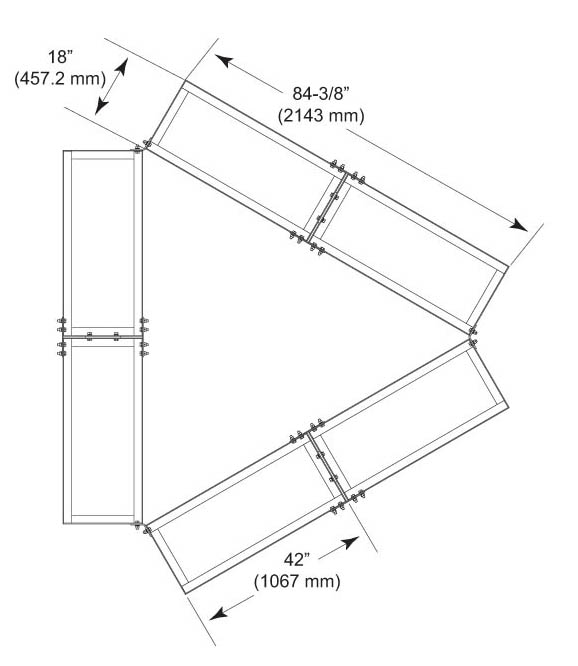

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Sled |
| Packaging quantity | 1 |
| Weight, net | 77.9 kg | 171.74 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Tripod mount component |
| Ordering Note | NSTD445 Compliant |
General specifications
| Mounting | Non-penetrating |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 2209.8 mm | 87 in |
| Length | 2.225 m | 7.3 ft |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Sled |
| Packaging quantity | 1 |
| Weight, net | 77.9 kg | 171.74 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
