MT-180
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

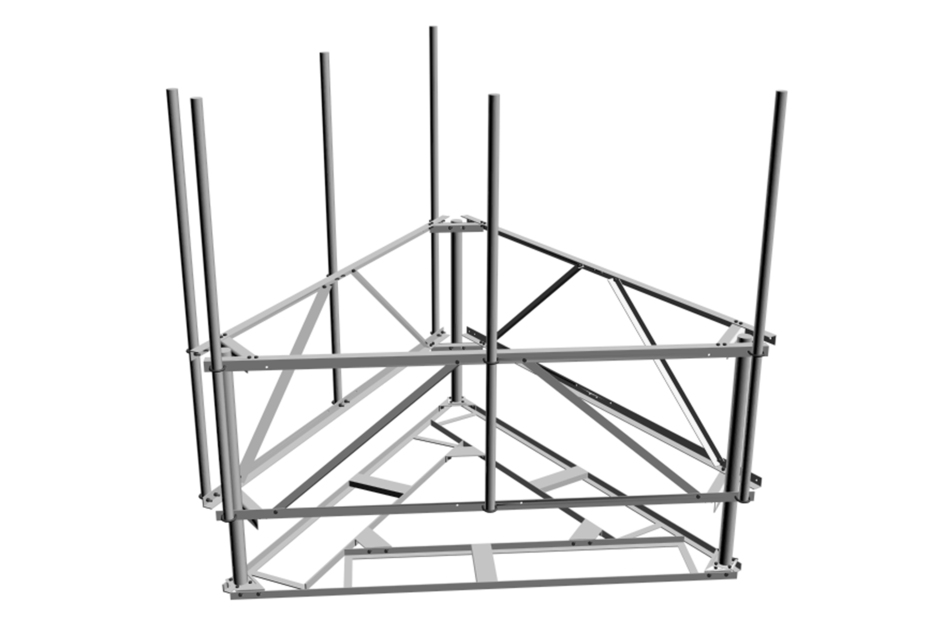

Multi-Sector Roof Frame Only, 10 ft face, Non-Penetrating Sled (MT-181) and pipe sold separately
Specifications
Product classification
| Product Type | Rooftop sector frame |
General specifications
| Mounting | Non-penetrating |
Dimensions
| Height | 3124.2 mm | 123 in |
| Face Width | 3.048 m | 10 ft |
| Width | 3124.2 mm | 123 in |
| Length | 1.524 m | 5 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mount | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 211.2 kg | 465.616 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
