RR-FA4

Base product: RRU-MOUNTS

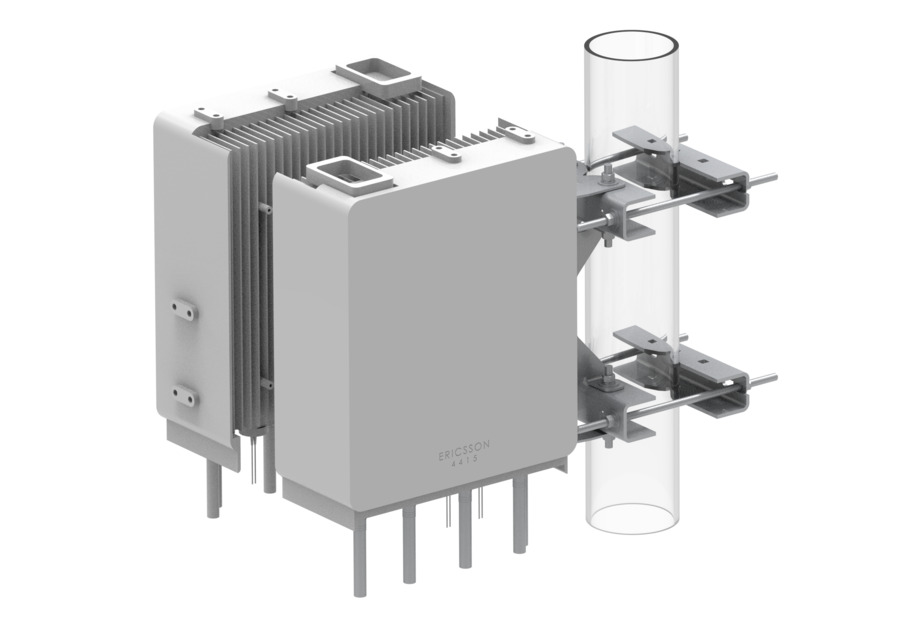

RRU Mount Kit for Back-to-Back Mounting of (2) RRUs on up to 5.6" Round, 6" 60 degree or 4.5" 90 Degree Angle

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

Accomodates a wide variety of radios.

Features integrated lifting points for safe and efficient hoisting of radios to the mounting location

Supports all typical RRH units from Ericsson, ERS and RRUS

Specifications

Product classification

Product Type	Remote radio head unit mount
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General specifications

Mounting	Round and angle legs
Radio Compatibility, Ericsson	(2) RRUS11/12/32, 2212, 4415, 4426, 4478 \| 4426 \| 4435 \| 4449 \| 4455 \| 4460 \| 4467 \| 4478 \| 4480 \| 4490 \| 4890 \| 8843 \| 8863
Tower Taper	Non-tapered \| Tapered

Dimensions

Height	388.620 mm \| 15.3 in
Width	215.900 mm \| 8.5 in
Length	650.240 mm \| 25.6 in
Mounting Diameter 2, maximum	152.400 mm \| 6 in
Mounting Diameter 2, minimum	38.100 mm \| 1.5 in
Mounting Diameter, maximum	142.24 mm \| 5.6 in
Mounting Diameter, minimum	60.960 mm \| 2.4 in

Material specifications

Material Type

Hot dip galvanized steel

Packaging and weights

Included	Clamps \| Hardware
Packaging quantity	1
Weight, net	21.913 kg \| 48.31 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
