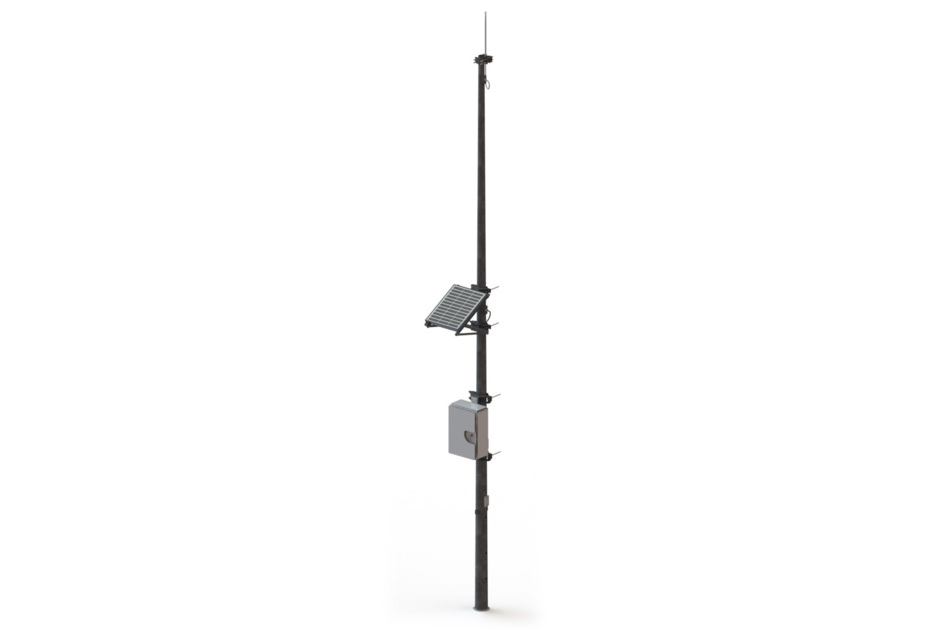

ST-SVP20
Solar/Video Embedded Communication Pole, 20 ft
Features and benefits
- Hinged design
- No climbing necessary for equipment installation
- Single person service
- Secure locking
Specifications
Product classification
| Product Type | Monopole |
General specifications
| Application | Solar | Supervisory Control and Data Acquisition (SCADA)/Video surveillance |
| Equipment Load Rating | Omni antenna | Solar panel | Telecommunications unit |
| Foundation | Embedded |
| Monopole Capability Type | Light duty |
| Monopole Design | Round conical |
| Optional Accessories | Antenna mounts | Ballast mounting kit | Cabinet mounts | Solar mounts | Video mounts |
Dimensions
| Height | 6.096 m | 20 ft |
| Mounting Diameter, maximum | 162.56 mm | 6.4 in |
| Mounting Diameter, minimum | 76.2 mm | 3 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Ground tab | Hand holes | Lightning rod | Monopole |
| Packaging quantity | 1 |
| Weight, net | 69.4 kg | 153.001 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
