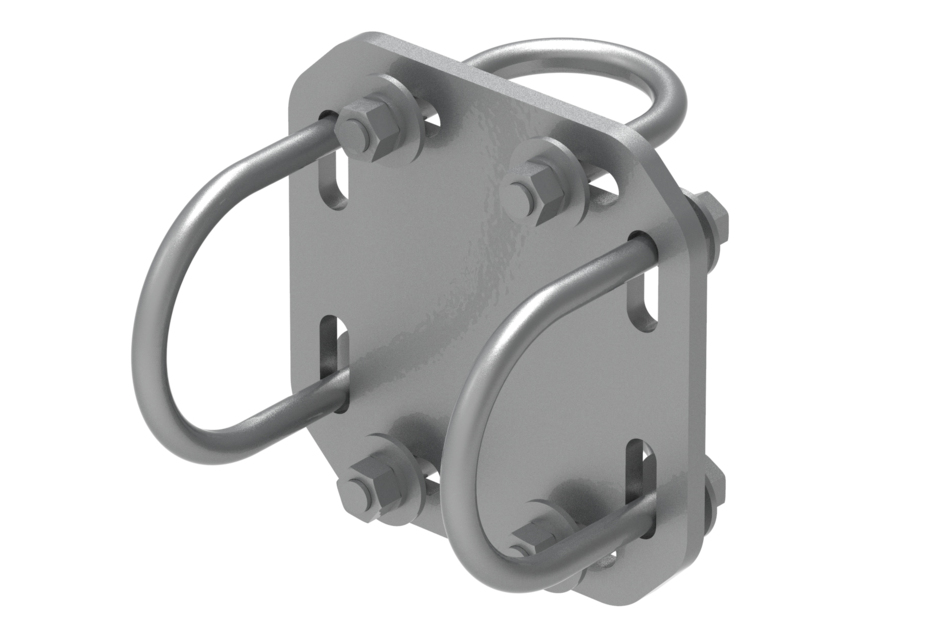

XP-2040
Crossover Plate, joins 2-3/8 in to 4-1/2 in OD round members
Specifications
Product classification
| Product Type | Clamp plate |
General specifications
| Mounting | Crossover plate |
Dimensions
| Mounting Diameter, maximum | 101.600 mm | 4 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
| Material Thickness | 9.525 mm | 0.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Plates | U-bolts |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Clamp plate |
General specifications
| Mounting | Crossover plate |
Dimensions
| Mounting Diameter, maximum | 101.600 mm | 4 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
| Material Thickness | 9.525 mm | 0.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Plates | U-bolts |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
