SF-PK-238-238

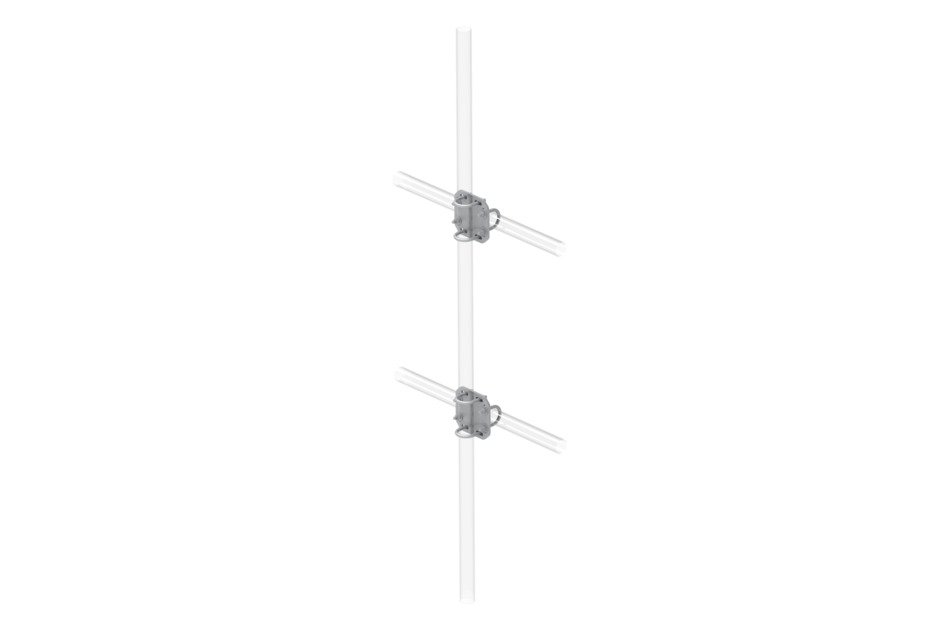

Sector Frame Pipe Mount Kit, with (2) 2-3/8 to 2-3/8 in Crossover plates and (1) 2-3/8" OD x 96" Pipe
Specifications
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Round member |
| Pipe, quantity | 1 |
Dimensions
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 60.325 mm | 2.375 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover plates | Plain end pipes | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 25.5 kg | 56.218 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Round member |
| Pipe, quantity | 1 |
Dimensions
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 60.325 mm | 2.375 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover plates | Plain end pipes | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 25.5 kg | 56.218 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
