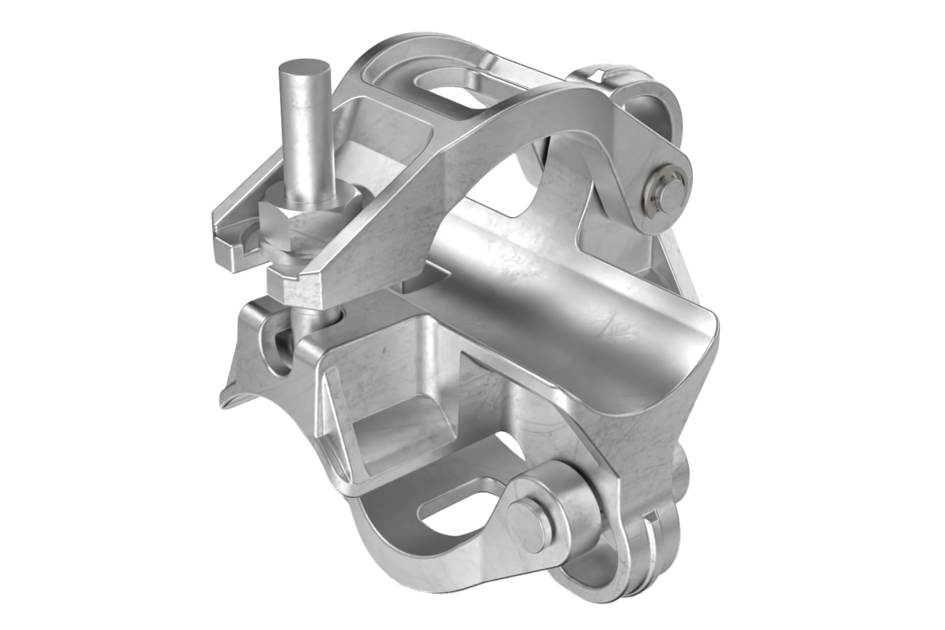

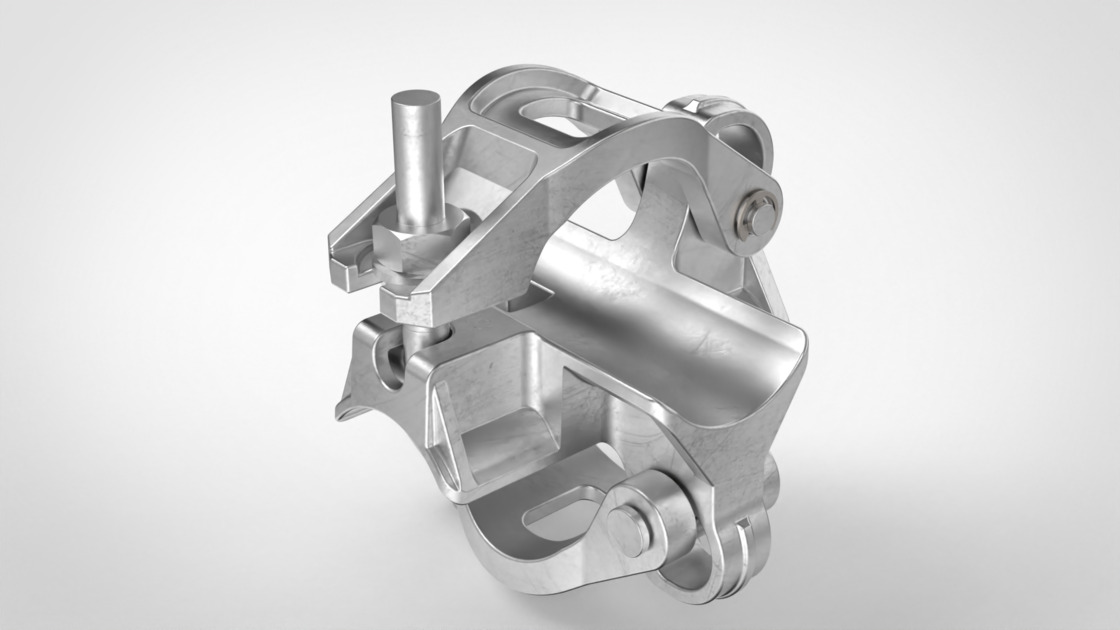

QCC-DD-EE-DE
Quick-Clamp Cast Crossover, joins 2-3/8 in and 2-7/8 in OD round members
Features and benefits
Alternative Cross‑Over Plate Architecture — A redesigned cast structure that eliminates the need for traditional U‑bolts
Minimal Hardware Requirement — Uses only two captive bolts instead of four U‑bolts and eight sets of loose hardware
Multiple Pipe OD Compatibility — One design accommodates both 2.375" and 2.875 pipes
Integrated Position Window — Provides built-in window to enable precise pipe alignment & spacing during installation
PIM Mitigating Design — Eliminates loose hardware that can contribute to passive intermodulation (PIM)
High Mechanical Performance — Delivers axial and rotational clamping performance comparable to legacy U‑bolt systems
Self-Aligning: Self Alignment between pipes eliminates manual adjustments to plumb antenna pipes
Up to 75% Faster Installation The reduction in hardware and simplified assembly dramatically accelerates field installation to reduce labor cost
Minimal Hardware Requirement — Uses only two captive bolts instead of four U‑bolts and eight sets of loose hardware
Multiple Pipe OD Compatibility — One design accommodates both 2.375" and 2.875 pipes
Integrated Position Window — Provides built-in window to enable precise pipe alignment & spacing during installation
PIM Mitigating Design — Eliminates loose hardware that can contribute to passive intermodulation (PIM)
High Mechanical Performance — Delivers axial and rotational clamping performance comparable to legacy U‑bolt systems
Self-Aligning: Self Alignment between pipes eliminates manual adjustments to plumb antenna pipes
Up to 75% Faster Installation The reduction in hardware and simplified assembly dramatically accelerates field installation to reduce labor cost
Specifications
Product classification
| Product Type | Clamp |
General specifications
| Mounting | Round member |
Dimensions
| Mounting Diameter, maximum | 73.025 mm | 2.875 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp | Hardware |
| Packaging quantity | 1 |
| Weight, net | 2.77 kg | 6.107 lb |
Product classification
| Product Type | Clamp |
General specifications
| Mounting | Round member |
Dimensions
| Mounting Diameter, maximum | 73.025 mm | 2.875 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp | Hardware |
| Packaging quantity | 1 |
| Weight, net | 2.77 kg | 6.107 lb |
