MTC3326DA2W

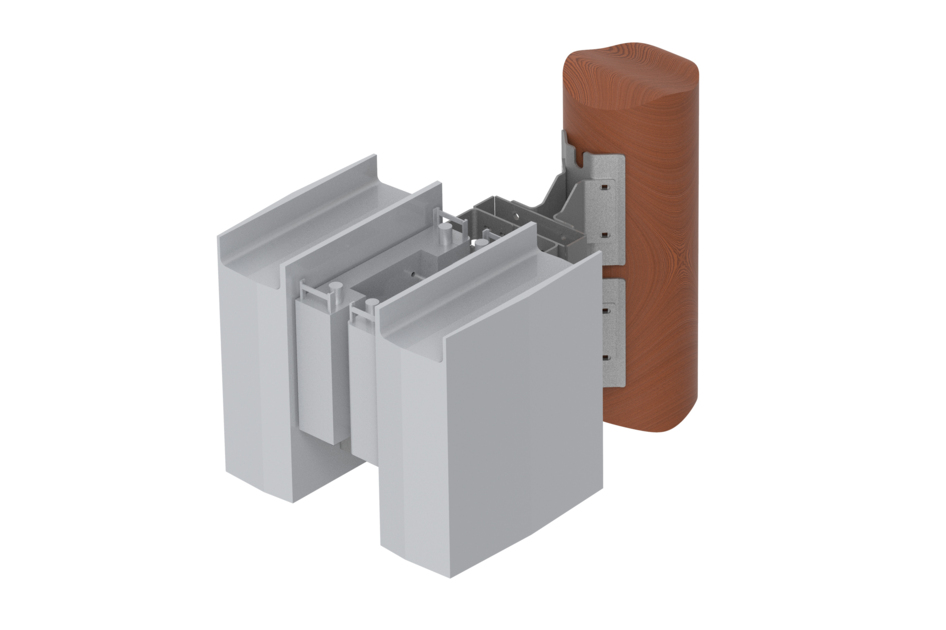

Dual Back-to-back RRU Side Pole Mount for up to 10" OD Pole
Specifications
Product classification
| Product Type | Wood pole mount |
General specifications
| Mounting | Wood pole |
Dimensions
| Height | 500.380 mm | 19.7 in |
| Width | 236.220 mm | 9.3 in |
| Length | 462.280 mm | 18.2 in |
| Mounting Diameter, maximum | 254.000 mm | 10 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 21.4 kg | 47.179 lb |
Product classification
| Product Type | Wood pole mount |
General specifications
| Mounting | Wood pole |
Dimensions
| Height | 500.380 mm | 19.7 in |
| Width | 236.220 mm | 9.3 in |
| Length | 462.280 mm | 18.2 in |
| Mounting Diameter, maximum | 254.000 mm | 10 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 21.4 kg | 47.179 lb |
