MT-198-C

Double Pipe Curved Support Arm with U-bolts, 63 in

Finish making your selections or clear them to view relevant specifications.
Download specifications
Support Arms for Rings Mounts

Product classification

Product Type Pipe mount

General specifications

Mounting Ring mount

Dimensions

Height 1016 mm | 40 in
Width 254 mm | 10 in
Length 1524 mm | 60 in
Pipe Outer Diameter 114.3 mm | 4.5 in
Stand-off Distance 1600.2 mm | 63 in

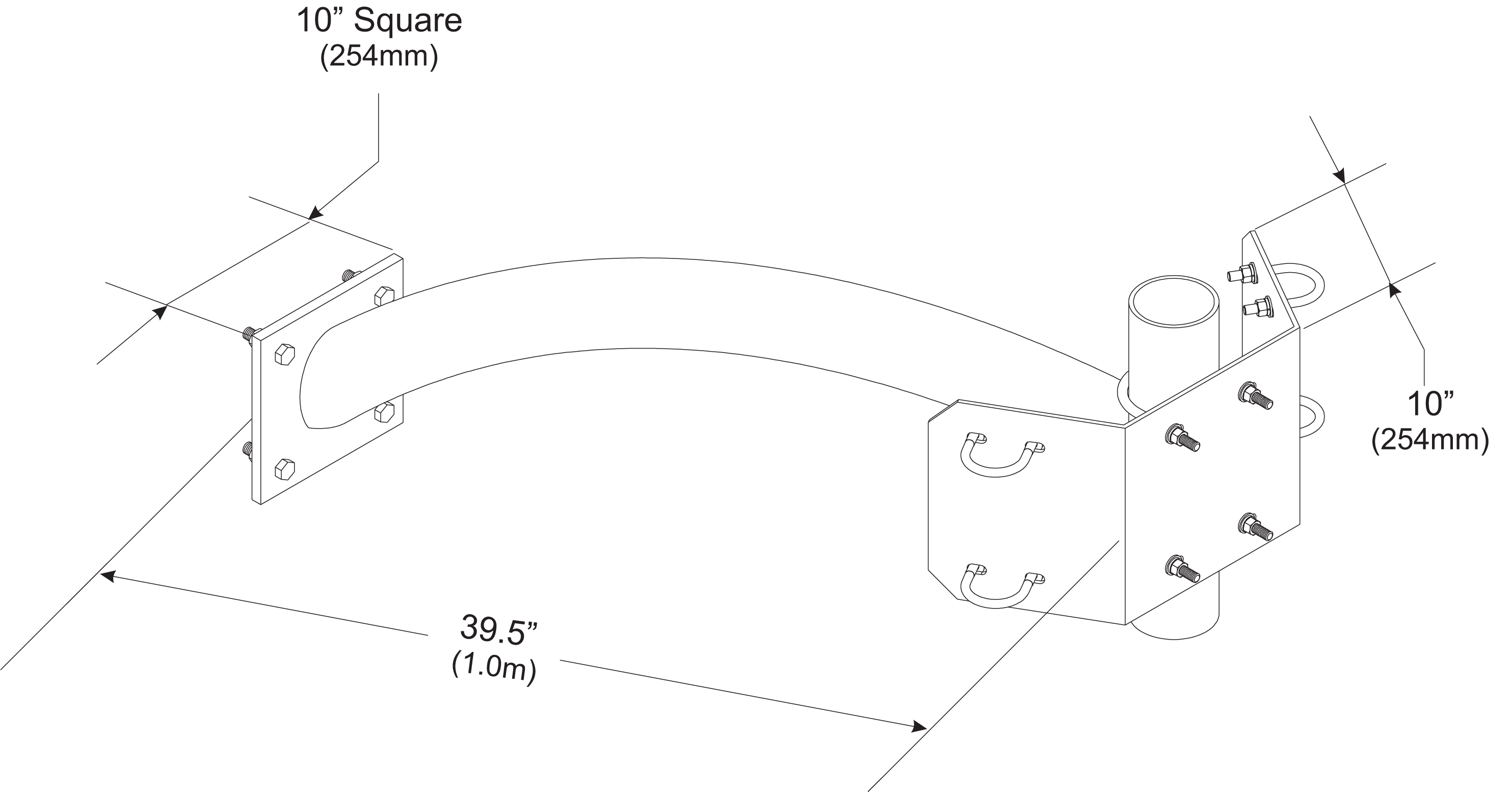

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Criteria Four 72 in x 8 in panel antennas per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Hardware | Stand-off arms
Packaging quantity 1
Weight, net 55.8 kg | 123.018 lb

Product classification

Product Type Pipe mount

General specifications

Mounting Ring mount

Dimensions

Height 1016 mm | 40 in
Width 254 mm | 10 in
Length 1524 mm | 60 in
Pipe Outer Diameter 114.3 mm | 4.5 in
Stand-off Distance 1600.2 mm | 63 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Criteria Four 72 in x 8 in panel antennas per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Hardware | Stand-off arms
Packaging quantity 1
Weight, net 55.8 kg | 123.018 lb
Click on image to enlarge.

Assembly drawing

Double Pipe Curved Support Arm, 63 in
