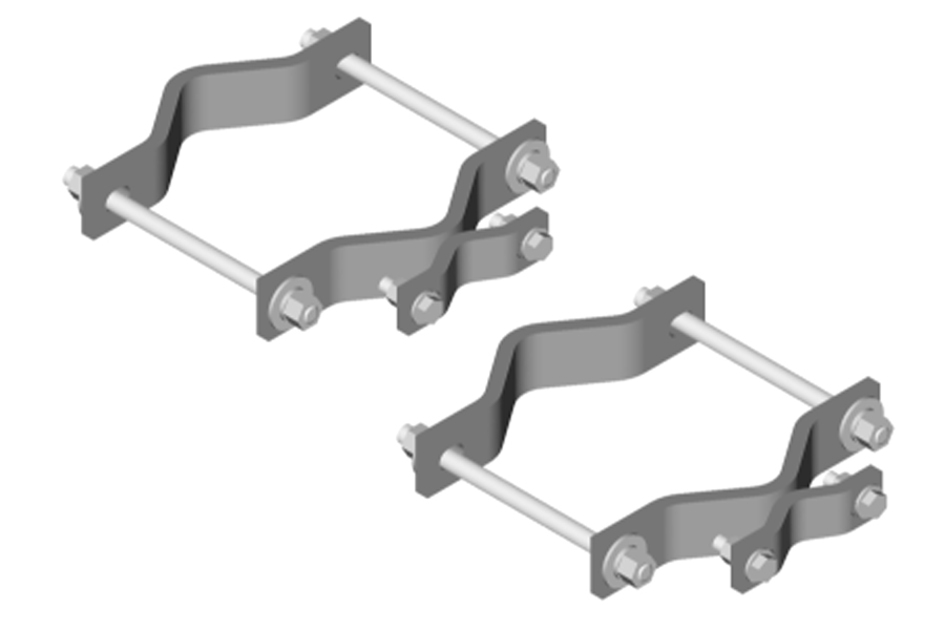

MS-SB50
Adapter Clamp Set, 4 in to 9 in OD
Specifications
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter, maximum | 228.6 mm | 9 in |
| Mounting Diameter, minimum | 101.6 mm | 4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 9.5 kg | 20.944 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter, maximum | 228.6 mm | 9 in |
| Mounting Diameter, minimum | 101.6 mm | 4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 9.5 kg | 20.944 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
