LS-100

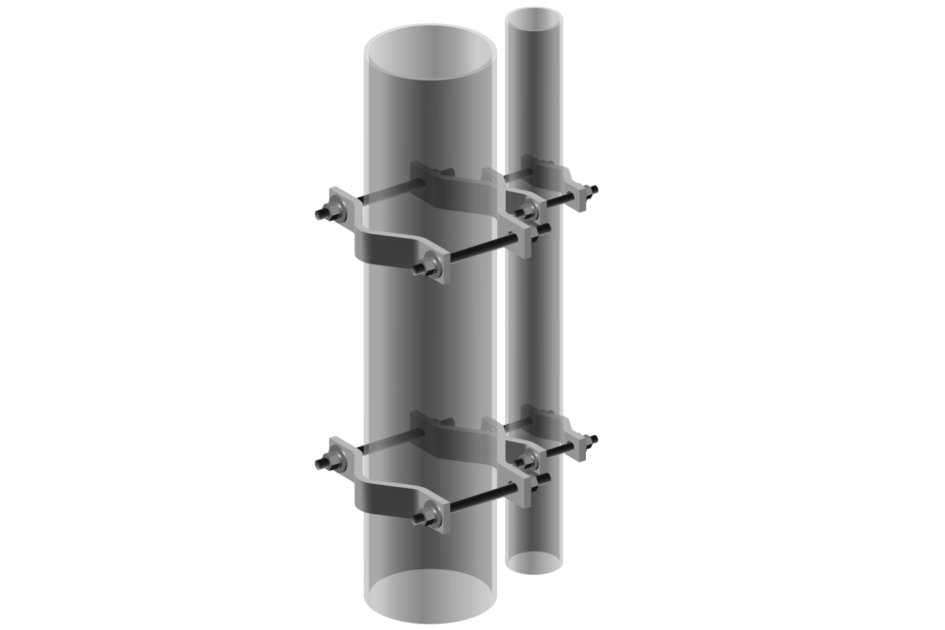

Pipe-to-Pipe Adapter, adapts 1-1/2 in to 3-1/2 in OD pipe to 8 in to 16 in OD pipe
Specifications
Product classification
| Product Type | Adapter |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter 2, maximum | 406.4 mm | 16 in |
| Mounting Diameter 2, minimum | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 19.5 kg | 42.99 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Adapter |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 304.8 mm | 12 in |
| Length | 406.4 mm | 16 in |
| Mounting Diameter 2, maximum | 406.4 mm | 16 in |
| Mounting Diameter 2, minimum | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 19.5 kg | 42.99 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
