PVS-050B-U
Base product: MOUNT-REINFORCEMENT-KITS

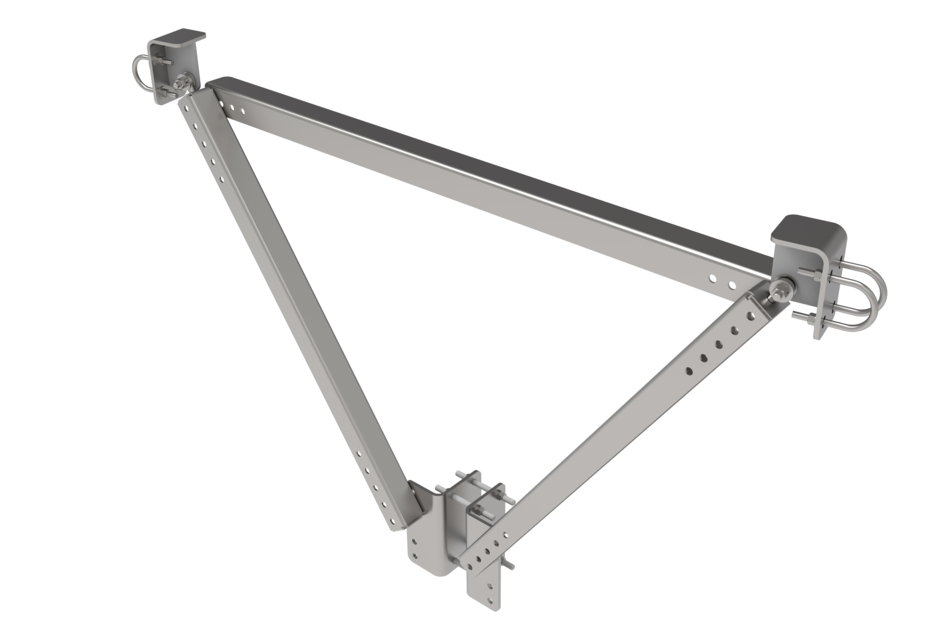

Top Rail Reinforcement Kit for Monopole Platforms
Specifications
Product classification
| Product Type | Reinforcement kit |
| Product Series | ATLAS |
General specifications
| Mounting | Round member | Square support rail |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Width | 4419.600 mm | 174 in |
| Mounting Diameter, maximum | 1270 mm |
| Mounting Diameter, minimum | 254 mm |
| Stand-off Distance | 914.4 mm |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 60.214 kg | 132.75 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Reinforcement kit |
| Product Series | ATLAS |
General specifications
| Mounting | Round member | Square support rail |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Width | 4419.600 mm | 174 in |
| Mounting Diameter, maximum | 1270 mm |
| Mounting Diameter, minimum | 254 mm |
| Stand-off Distance | 914.4 mm |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 60.214 kg | 132.75 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
