MTC9076M69M96

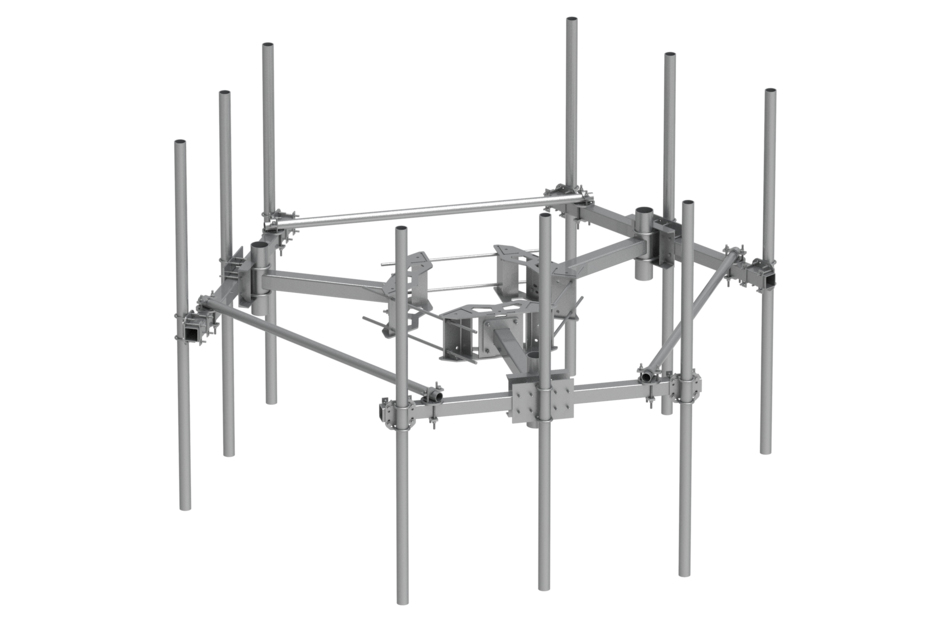

T-Arm Monopole Mount, Includes Ring Mount for 15"-50" OD Monopole, 6.5 ft face plus (9) 2-7/8" OD x 96” Antenna Pipes and Corner Tiebacks
Specifications
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 9 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 1.981 m | 6.5 ft |
| Width | 2133.600 mm | 84 in |
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1010.412 mm | 39.78 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Pipe mounts | Plain end pipes | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 574.702 kg | 1267 lb |
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 9 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 1.981 m | 6.5 ft |
| Width | 2133.600 mm | 84 in |
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1010.412 mm | 39.78 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Pipe mounts | Plain end pipes | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 574.702 kg | 1267 lb |
