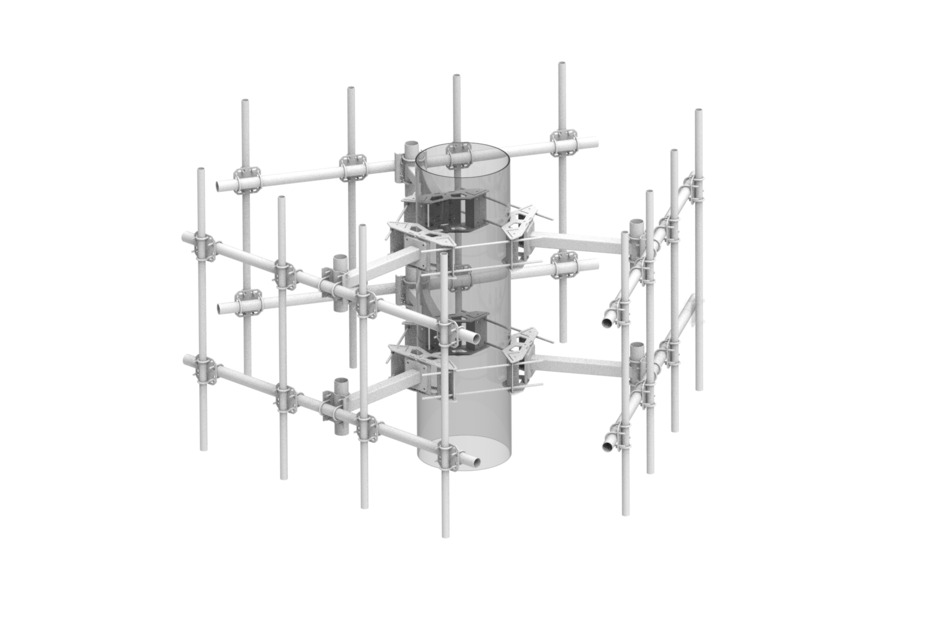

MTC4074M101296
Base product: MC-K-SERIES
Three-Sector Double T-Arm Monopole Mount, Includes (2) Ring Mounts for 15"-50" OD Monopole, 10.5 ft x 3-1/2" OD face pipes, (12) 2-3/8" OD x 96” Antenna Pipes
Specifications
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.200 m | 10.5 ft |
| Width | 3200.400 mm | 126 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 884.804 kg | 1950.66 lb |
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.200 m | 10.5 ft |
| Width | 3200.400 mm | 126 in |
| Pipe Length | 2438.400 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 884.804 kg | 1950.66 lb |
