MTC40231255
Base product: RING-MOUNTS

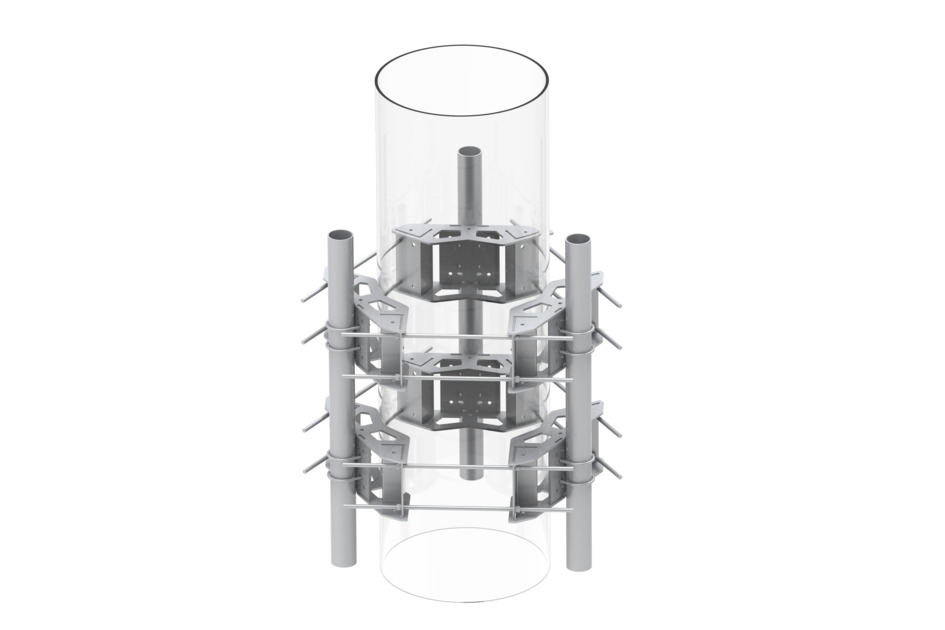

Dual Universal Ring Mount (MC-RM1550-3D), 15 in to 50 in OD with (3) 4-1/2"OD x 63" Pipes
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 3 |
| Sectors, quantity | 3 |
Dimensions
| Height | 1600.200 mm | 63 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381 mm | 15 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes (3) | Ring mounts (2) | Threaded rod | U-bolts |
| Weight, net | 316.925 kg | 698.7 lb |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 3 |
| Sectors, quantity | 3 |
Dimensions
| Height | 1600.200 mm | 63 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381 mm | 15 in |
| Pipe Outer Diameter | 114.300 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes (3) | Ring mounts (2) | Threaded rod | U-bolts |
| Weight, net | 316.925 kg | 698.7 lb |
