MCHD-TR4-14
Base product: MOUNT-ACCESSORIES

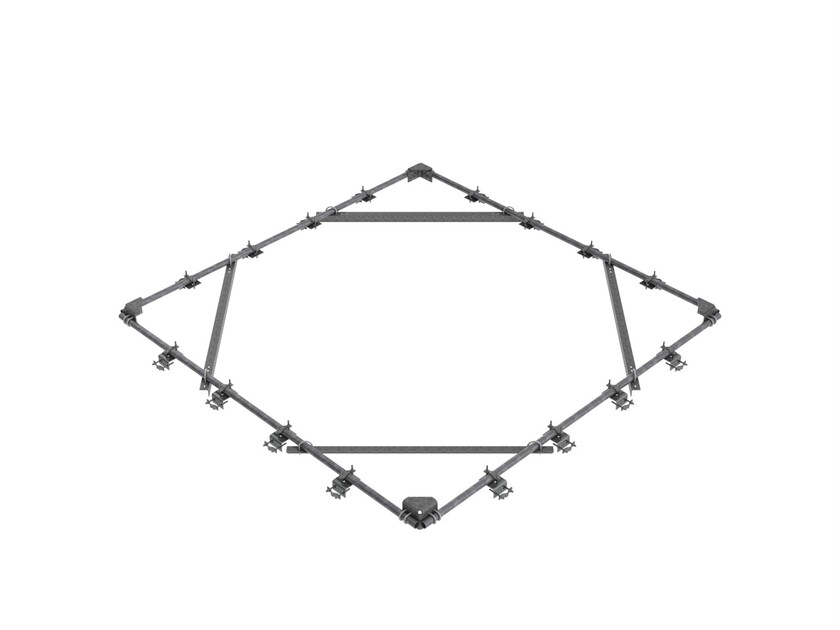

Four Sector Top Rail Kit, Heavy Duty 2-7/8" x 14 ft 6 in face with HW for (12) 2-7/8" Pipes
Specifications
Product classification
| Product Type | Co-location platform |
General specifications
| Mounting | Four sector monopole platform, 14 ft 6 in face |
| Sectors, quantity | 4 |
Dimensions
| Height | 101.6 mm | 4 in |
| Face Width | 4.420 m | 14.5 ft |
| Platform Width | 4419.600 mm | 174 in |
| Width | 4419.600 mm | 174 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Corner clips | Crossover plates | Hardware | Rail |
| Packaging quantity | 1 |
| Weight, net | 219.9 lb | 484.796 lb |
Product classification
| Product Type | Co-location platform |
General specifications
| Mounting | Four sector monopole platform, 14 ft 6 in face |
| Sectors, quantity | 4 |
Dimensions
| Height | 101.6 mm | 4 in |
| Face Width | 4.420 m | 14.5 ft |
| Platform Width | 4419.600 mm | 174 in |
| Width | 4419.600 mm | 174 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Corner clips | Crossover plates | Hardware | Rail |
| Packaging quantity | 1 |
| Weight, net | 219.9 lb | 484.796 lb |
