MC-PM14M4-B

Base product: ATLAS

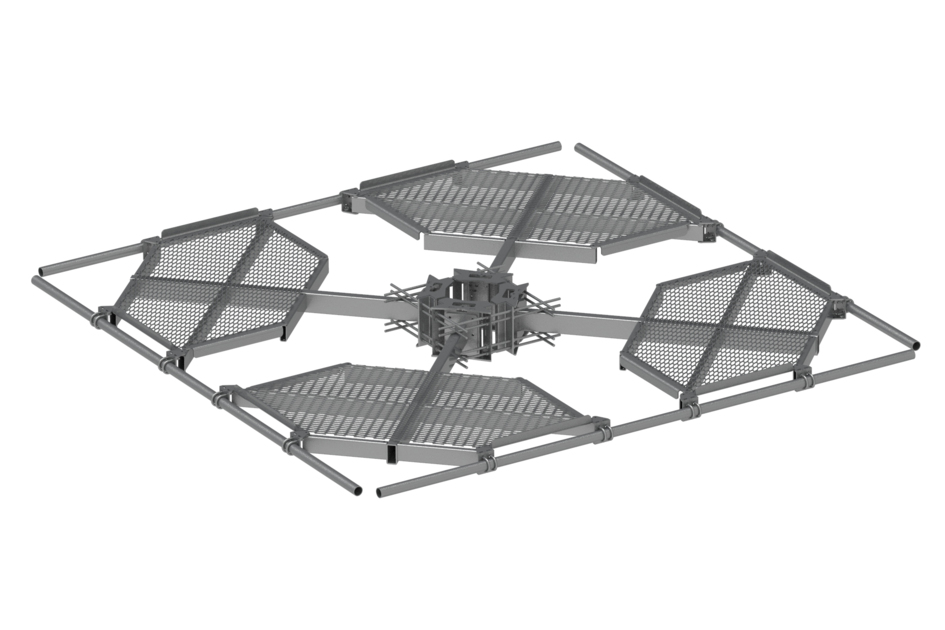

Atlas 4-Sector Monopole Platform Base kit, 15 in to 45 in OD, 2-7/8 in OD x 14 ft 6 in face. Top rail & antenna pipe/mounts ordered separately.

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
MC-PM14M4-B

Product classification

Product Type Monopole platform kit
Product Series ATLAS

General specifications

Pipe, quantity 0
Sectors, quantity 4

Dimensions

Face Width 4.42 m | 14.5 ft
Width 4419.6 mm | 174 in
Face Support Pipe Diameter 73.025 mm | 2.875 in
Mounting Diameter, maximum 1143.000 mm | 45 in
Mounting Diameter, minimum 381.000 mm | 15 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Platform | Ring mount
Packaging quantity 1
Weight, net 1254.183 kg | 2765 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Product classification

Product Type Monopole platform kit
Product Series ATLAS

General specifications

Pipe, quantity 0
Sectors, quantity 4

Dimensions

Face Width 4.42 m | 14.5 ft
Width 4419.6 mm | 174 in
Face Support Pipe Diameter 73.025 mm | 2.875 in
Mounting Diameter, maximum 1143.000 mm | 45 in
Mounting Diameter, minimum 381.000 mm | 15 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Platform | Ring mount
Packaging quantity 1
Weight, net 1254.183 kg | 2765 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
