MC-HR25X-10-12
Base product: MOUNT-ACCESSORIES

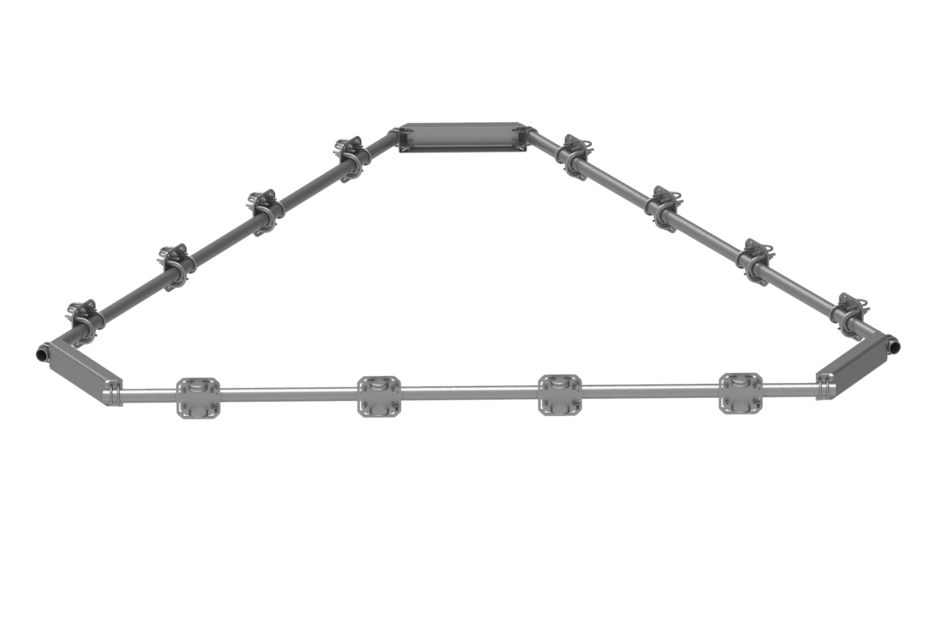

Three Sector Top Rail Kit, 2-7/8 in OD x 10 ft 6 in face with (12) 2-7/8" Pipe Mounts included
Specifications
Product classification
| Product Type | Co-location platform |
General specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Face Width | 3.200 m | 10.5 ft |
| Platform Width | 3200.400 mm | 126 in |
| Width | 3200.400 mm | 126 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Corner clips | Hardware | Pipe mounts | Rail |
| Packaging quantity | 1 |
| Weight, net | 56.5 lb | 124.561 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Co-location platform |
General specifications
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Face Width | 3.200 m | 10.5 ft |
| Platform Width | 3200.400 mm | 126 in |
| Width | 3200.400 mm | 126 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Corner clips | Hardware | Pipe mounts | Rail |
| Packaging quantity | 1 |
| Weight, net | 56.5 lb | 124.561 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
