E15S07P13

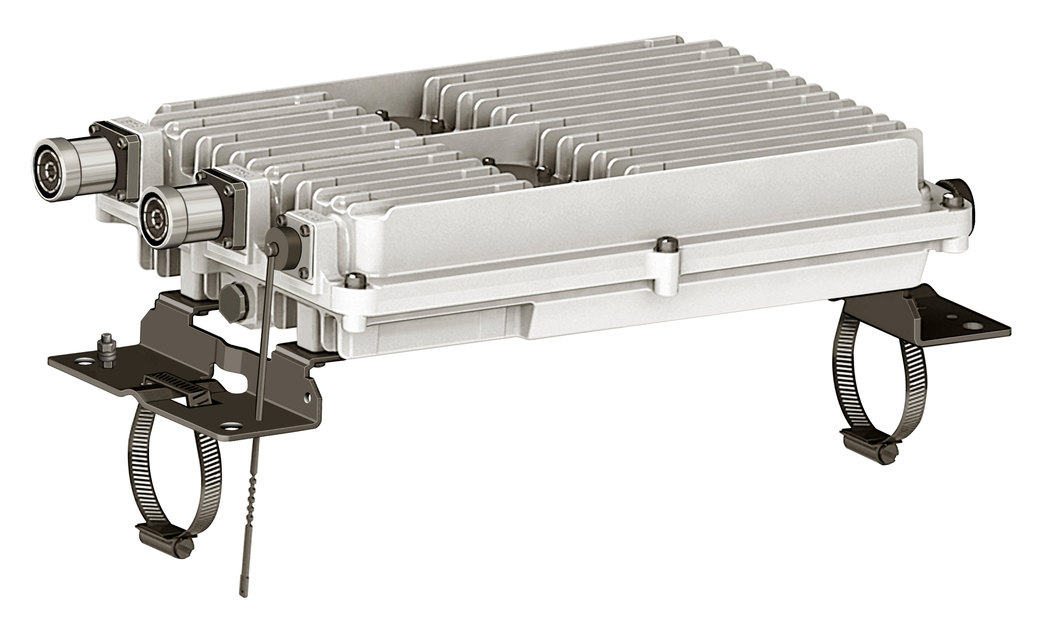

Tower Mounted Amplifier, Dual LTE-TDD 2.3 GHz
Features and benefits
- Single AISG with 1 RET connector
- Built in lightning protection
- Connectors “in line”
- Automatic LNA by-pass function
- 2 input ports and 2 output ports
- Designed to boost UP-Link Coverage and KPIs
Specifications
Product classification
| Product Type | 1-BTS:1-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 78 mm | 3.071 in |
| Width | 345 mm | 13.583 in |
| Depth | 232 mm | 9.134 in |
| Ground Screw Diameter | 8 mm | 0.315 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

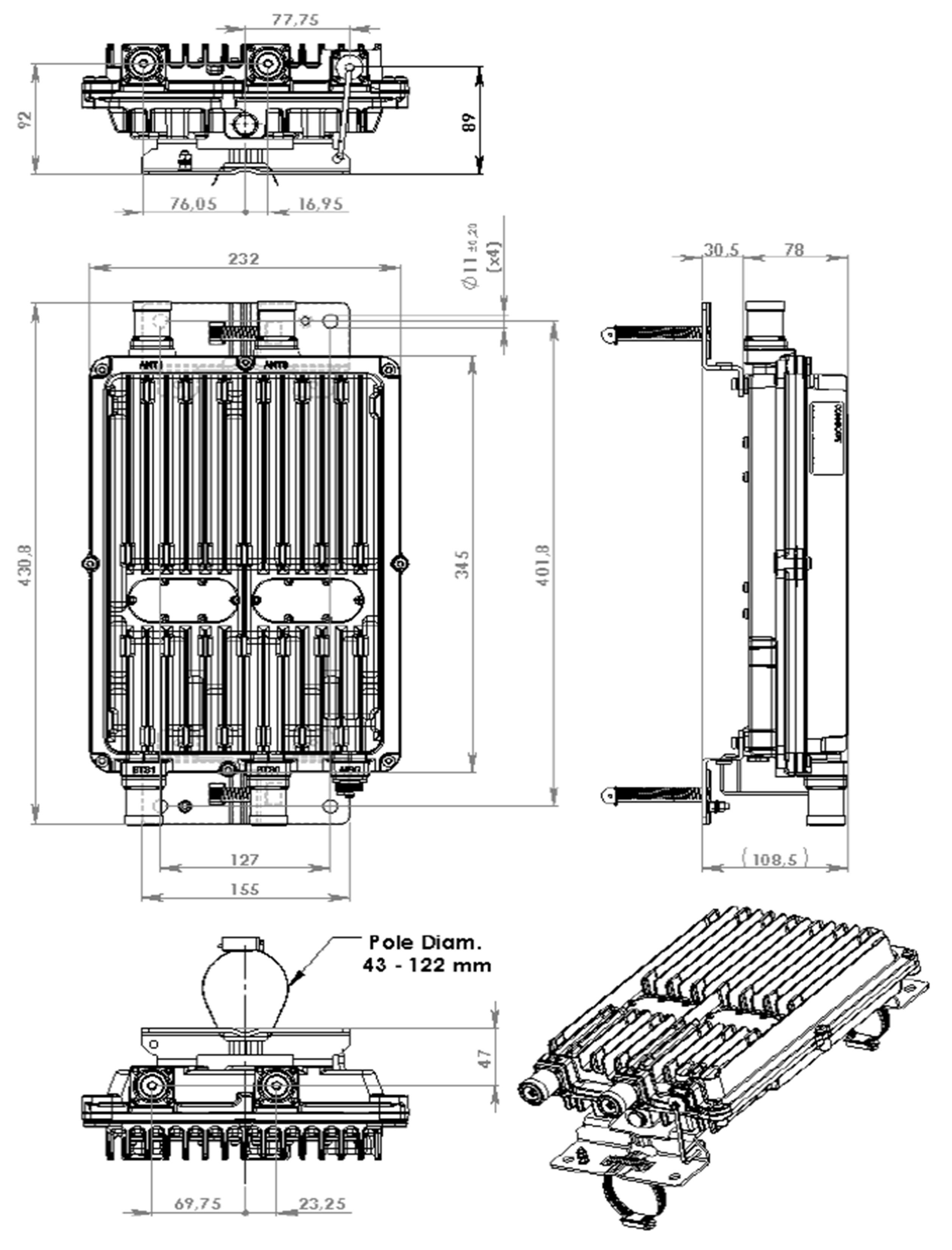

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, LNA | TDD 2300 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Default Protocol | AISG 2.0 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT |
| License Band | TDD 2300, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 2300–2400 |
| Bandwidth, MHz | 100.00 |
| Gain, nominal, dB | 13.0 |
| Gain Tolerance, dB | ±1 |
| Noise Figure, typical, dB | 1.7 |
| Group Delay Variation, maximum, ns | 40 |
| Group Delay Variation Bandwidth, MHz | 20.00 |
| Total Group Delay, maximum, ns | 60 |
| Output IP3, minimum, dBm | 12 |
| Return Loss, minimum, dB | 15 |
| Return Loss, typical, dB | 18 |
| Insertion Loss - Bypass Mode, typical, dB | 0.8 |
| Return Loss - Bypass Mode, typical, dB | 16 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 2300–2400 |
| Bandwidth, MHz | 100.00 |
| Insertion Loss, typical, dB | 1.20 |
| Group Delay Variation, maximum, ns | 30 |
| Group Delay Variation Bandwidth, MHz | 20.00 |
| Total Group Delay, maximum, ns | 50 |
| Return Loss, minimum, dB | 16 |
| Return Loss, typical, dB | 18 |
| Input Power, RMS, maximum, W | 50 |
| Input Power, PEP, maximum, W | 500 |
Block diagram
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.7 L |
| Weight, net | 7.1 kg | 15.653 lb |
Product classification
| Product Type | 1-BTS:1-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 78 mm | 3.071 in |
| Width | 345 mm | 13.583 in |
| Depth | 232 mm | 9.134 in |
| Ground Screw Diameter | 8 mm | 0.315 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| License Band, LNA | TDD 2300 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Default Protocol | AISG 2.0 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT |
| License Band | TDD 2300, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 2300–2400 |
| Bandwidth, MHz | 100.00 |
| Gain, nominal, dB | 13.0 |
| Gain Tolerance, dB | ±1 |
| Noise Figure, typical, dB | 1.7 |
| Group Delay Variation, maximum, ns | 40 |
| Group Delay Variation Bandwidth, MHz | 20.00 |
| Total Group Delay, maximum, ns | 60 |
| Output IP3, minimum, dBm | 12 |
| Return Loss, minimum, dB | 15 |
| Return Loss, typical, dB | 18 |
| Insertion Loss - Bypass Mode, typical, dB | 0.8 |
| Return Loss - Bypass Mode, typical, dB | 16 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 2300–2400 |
| Bandwidth, MHz | 100.00 |
| Insertion Loss, typical, dB | 1.20 |
| Group Delay Variation, maximum, ns | 30 |
| Group Delay Variation Bandwidth, MHz | 20.00 |
| Total Group Delay, maximum, ns | 50 |
| Return Loss, minimum, dB | 16 |
| Return Loss, typical, dB | 18 |
| Input Power, RMS, maximum, W | 50 |
| Input Power, PEP, maximum, W | 500 |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.7 L |
| Weight, net | 7.1 kg | 15.653 lb |
