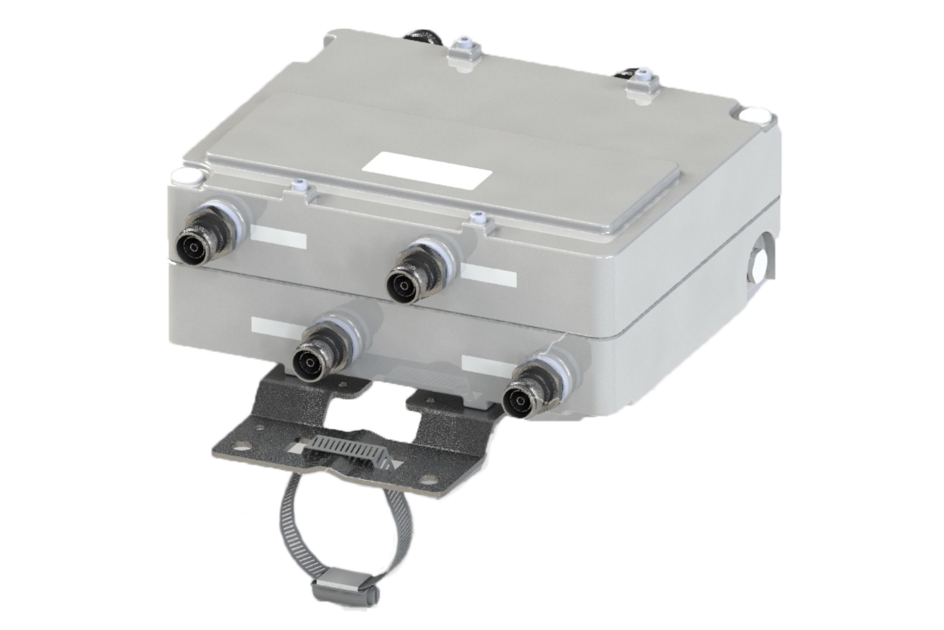

IMFQ-1921BAS-43 | E14V00P59
Quad Mid Band IMF for Broadcast Auxiliary Service(BAS) co-location, 4.3-10 connectors
Features and benefits
- Provides interference mitigation in the Broadcast Auxiliary Service band of 2025-2110 MHz
- Supports Band 66 and Band 70 Mid-Band radios
- Easy to install in existing AWS systems and prevent adjacent channel interference for BAS licensees
- New 4.3-10 connectors for improved PIM performance and size reduction
- Compact form factor with reduced size and weight
- DC/AISG passing on all ports
Specifications
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 201 mm | 7.913 in |
| Width | 244 mm | 9.606 in |
| Depth | 88 mm | 3.465 in |
| Ground Screw Diameter | 5 mm | 0.197 in |

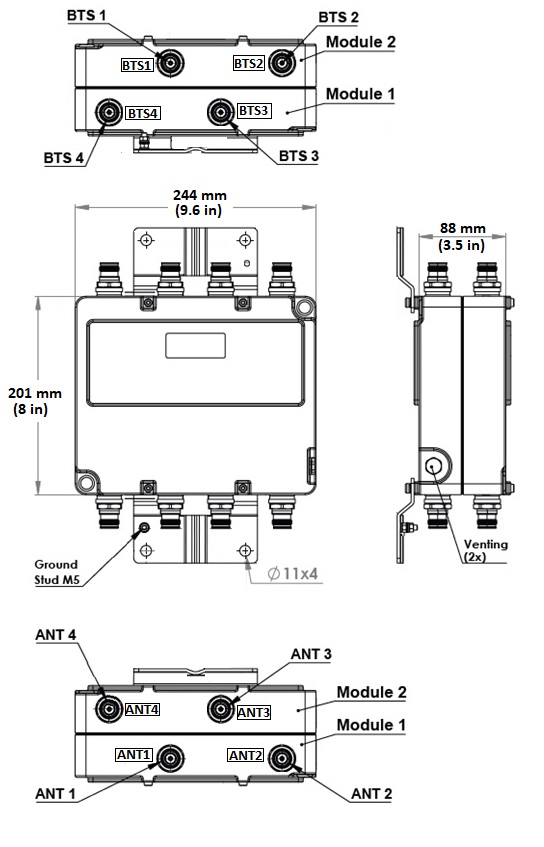

Outline drawing
| Click on image to enlarge. |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | ANT port to BTS port |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 1 | 1 |
| Port Designation | TX B70 | TX B66 | RX B66/B70 |
| License Band | AWS 2000, Band Pass | AWS 1700, Band Pass | AWS 1700, Band Pass AWS 2000, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1995–2020 | 2155–2200 | 1695–1780 |
| Insertion Loss, typical, dB | 0.40 | 0.20 | 0.15 |
| Total Group Delay, maximum, ns | 100 | 30 | 15 |
| Return Loss, typical, dB | 18 | 18 | 18 |
| Input Power, RMS, maximum, W | 100 | 100 | |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | |
| Higher Order PIM, minimum, dBc | -155 | -155 | |
| Higher Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Electrical specifications, band reject
| Frequency Range, MHz | 2025–2110 | ||
| Attenuation, minimum, dB | 40.0 |

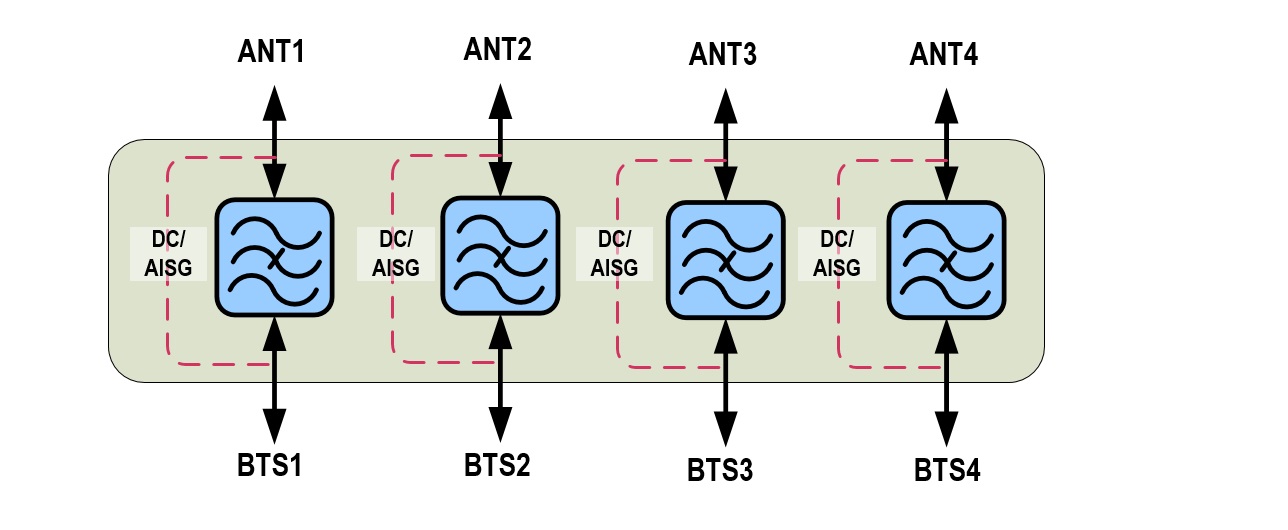

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.4 kg | 0.882 lb |
| Volume | 4.5 L |
| Weight, without mounting hardware | 8.5 kg | 18.739 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 201 mm | 7.913 in |
| Width | 244 mm | 9.606 in |
| Depth | 88 mm | 3.465 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | ANT port to BTS port |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 1 | 1 |
| Port Designation | TX B70 | TX B66 | RX B66/B70 |
| License Band | AWS 2000, Band Pass | AWS 1700, Band Pass | AWS 1700, Band Pass; AWS 2000, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1995–2020 | 2155–2200 | 1695–1780 |
| Insertion Loss, typical, dB | 0.40 | 0.20 | 0.15 |
| Total Group Delay, maximum, ns | 100 | 30 | 15 |
| Return Loss, typical, dB | 18 | 18 | 18 |
| Input Power, RMS, maximum, W | 100 | 100 | |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | |
| Higher Order PIM, minimum, dBc | -155 | -155 | |
| Higher Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Electrical specifications, band reject
| Frequency Range, MHz | 2025–2110 | ||
| Attenuation, minimum, dB | 40.0 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.4 kg | 0.882 lb |
| Volume | 4.5 L |
| Weight, without mounting hardware | 8.5 kg | 18.739 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
