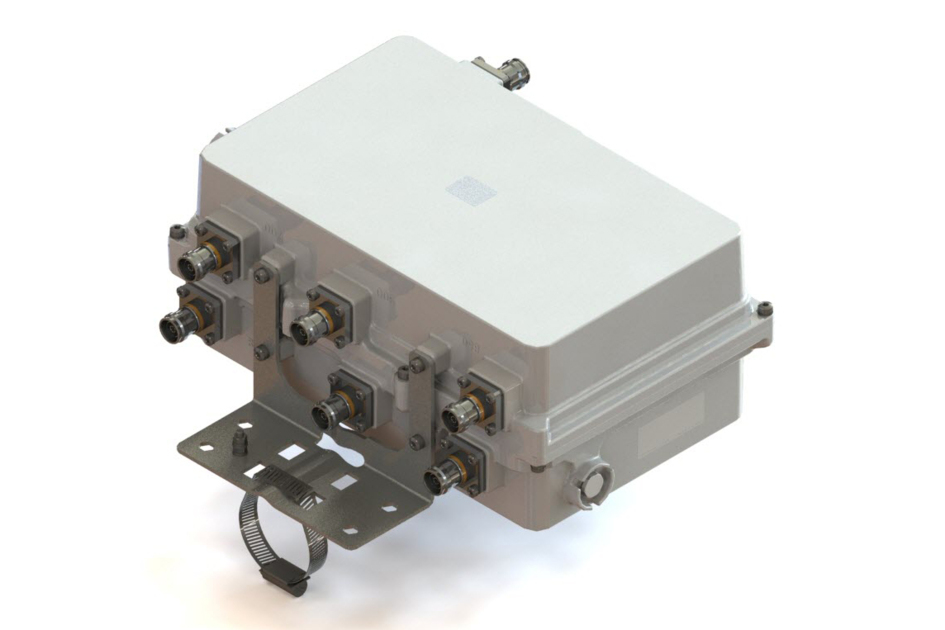

E12F03P18
CS-TPX 700/825-880/898.4-960 DC ALL, RJ30
Features and benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
- Additional Rejection in 880-890 MHz band 30 dB
- Twin configuration
- dc/AISG pass-through on all frequency ports
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC1821 |
| Color | Gray |
| Common Port Label | PORT 3 COMMON |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 337 mm | 13.268 in |
| Width | 216.5 mm | 8.524 in |
| Depth | 142 mm | 5.591 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

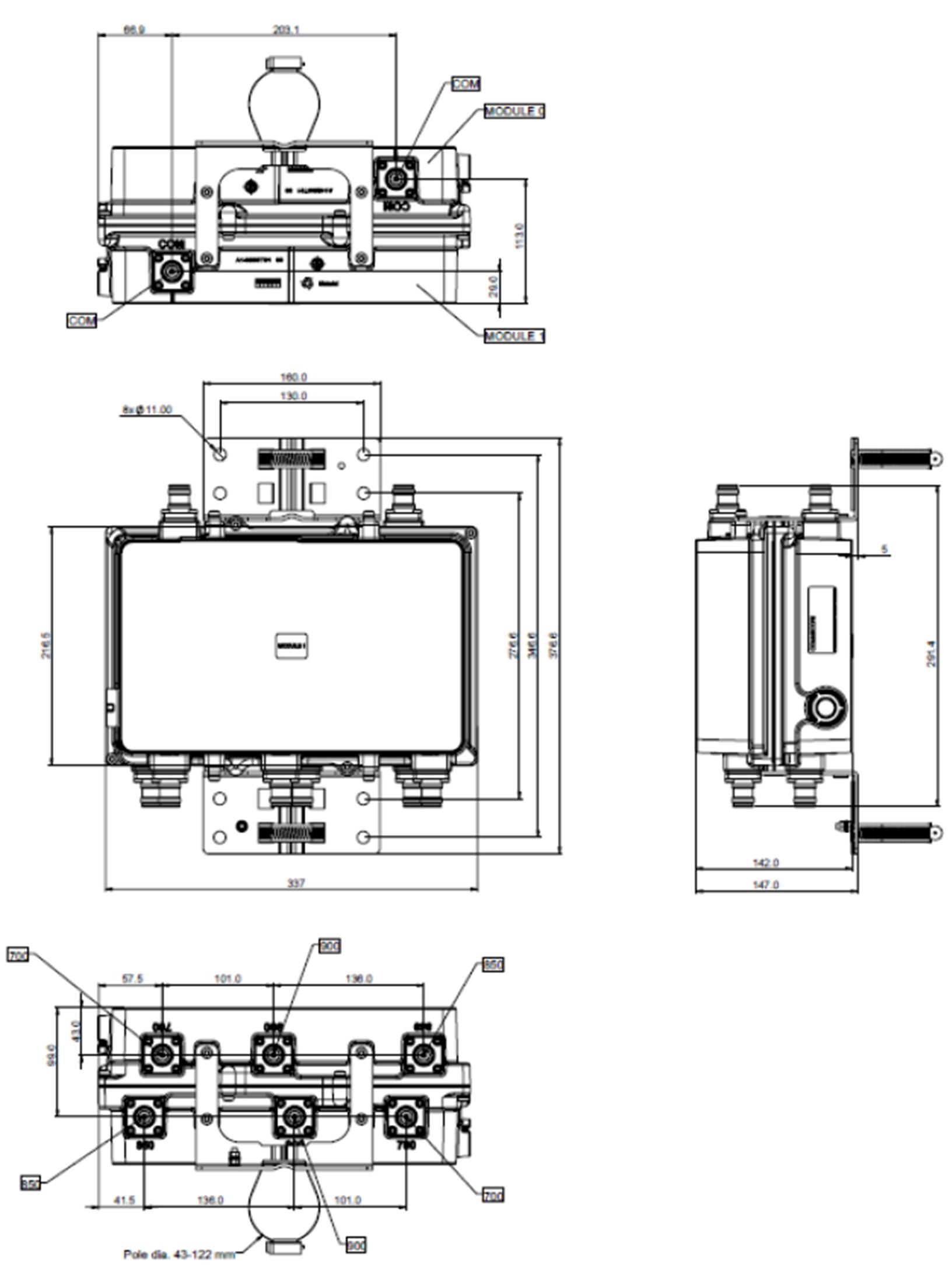

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 850 | CEL 900 | DCS 1800 | IMT 2100 | USA 700 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | PORT 1 850 | PORT 2 900 | PORT 3 700 |
| License Band | CEL 850, Band Pass | CEL 900, Band Pass | APT 700, Band Pass USA 700, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 825–880 | 898.4–960 | 703–803 |
| Insertion Loss, typical, dB | 0.35 | 0.30 | 0.30 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 160 | 160 | 160 |
| Input Power, PEP, maximum, W | 2,500 | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -153 | -153 | -153 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 880–890 | ||
| Attenuation, minimum, dB | 30.0 |
Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 10.5 L |
| Weight, net | 12 kg | 26.455 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC1821 |
| Color | Gray |
| Common Port Label | PORT 3 COMMON |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 337 mm | 13.268 in |
| Width | 216.5 mm | 8.524 in |
| Depth | 142 mm | 5.591 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 850 | CEL 900 | DCS 1800 | IMT 2100 | USA 700 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | PORT 1 850 | PORT 2 900 | PORT 3 700 |
| License Band | CEL 850, Band Pass | CEL 900, Band Pass | APT 700, Band Pass; USA 700, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 825–880 | 898.4–960 | 703–803 |
| Insertion Loss, typical, dB | 0.35 | 0.30 | 0.30 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 160 | 160 | 160 |
| Input Power, PEP, maximum, W | 2,500 | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -153 | -153 | -153 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 880–890 | ||
| Attenuation, minimum, dB | 30.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 10.5 L |
| Weight, net | 12 kg | 26.455 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
