CBC61923T-DS-43 | E14F10P58

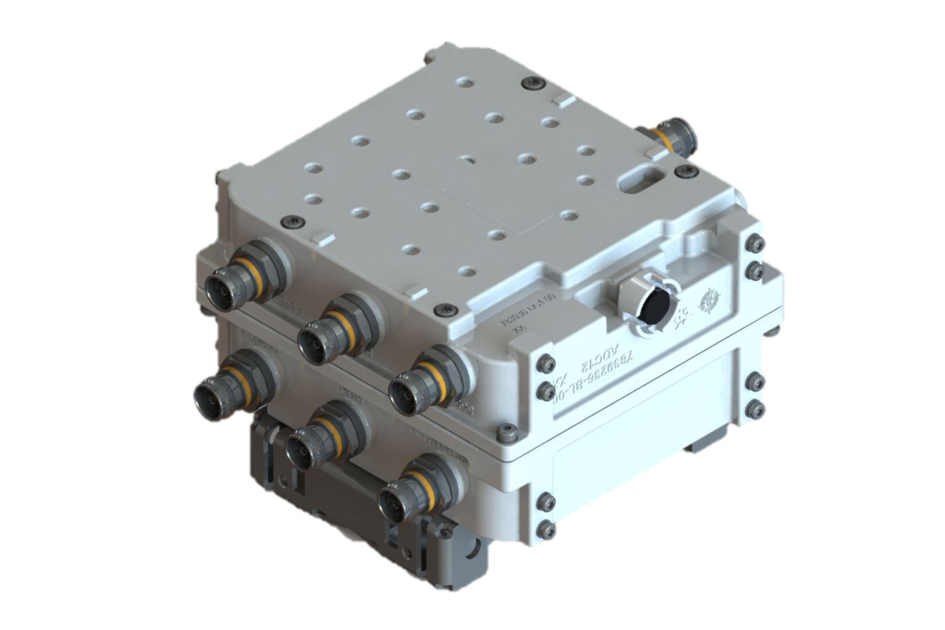

Twin Triplexer, 555-894/PCS/AWS+WCS, dc Sense,4.3-10
Features and benefits
- BTS-to-feeder and feeder-to-antenna application
- New 4.3-10 connectors for improved PIM performance and size reduction
- DC Load Sense in Feeder-to-Antenna applications
- Automatic dc switching with dc sense
- Convertible mounting brackets
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC61923 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 176 mm | 6.929 in |
| Width | 198 mm | 7.795 in |
| Depth | 106 mm | 4.173 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 40–160 mm |

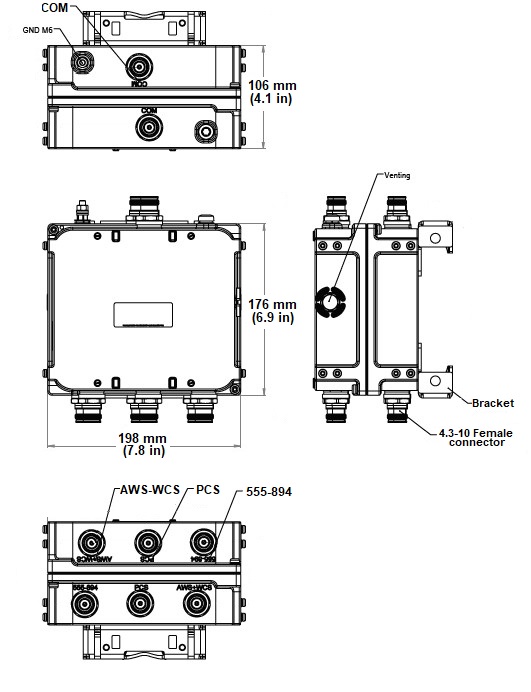

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | CEL 850 | LMR 750 | PCS 1900 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical specifications, common port
| Composite Power, RMS | 250 W |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 555-894MHz | PCS | AWS-WCS |
| License Band | CEL 850, Band Pass USA 600, Band Pass USA 700, Band Pass USA 750, Band Pass | PCS 1900, Band Pass | AWS 1700, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 555–894 | 1850-1995 | 1695–1780 2110–2200 2305–2360 |
| Insertion Loss, typical, dB | 0.10 | 0.25 | 0.25 |
| Total Group Delay, maximum, ns | 10 | 20 | 25 |
| Return Loss, minimum, dB | 21 | 21 | 21 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 | 2,000 |
| 3rd Order PIM, maximum, dBc | -161 | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | |
| Higher Order PIM, maximum, dBc | -161 | ||
| Higher Order PIM Test Method | 2 x 20 W CW tones |

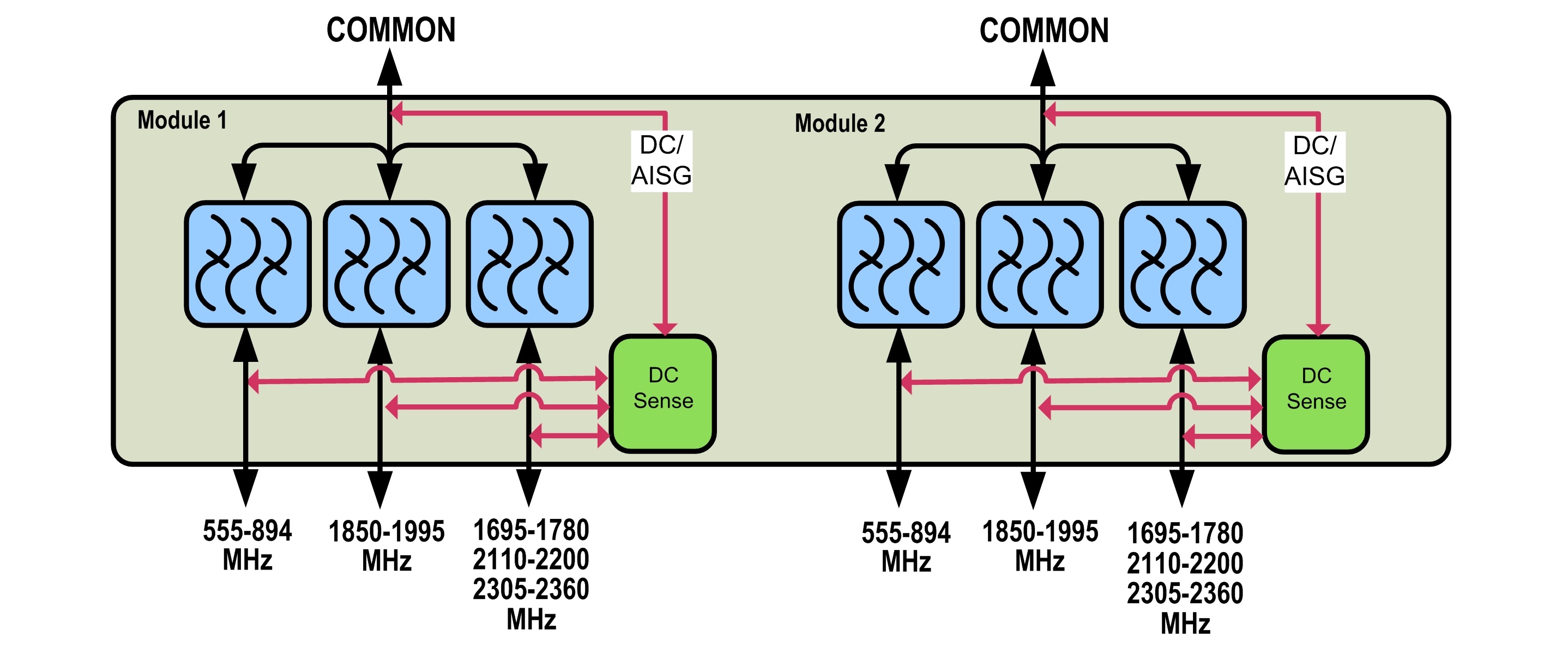

Block diagram
| Click on image to enlarge. |
Logic table
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Volume | 3.7 L |
| Weight, without mounting hardware | 5.3 kg | 11.684 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC61923 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 176 mm | 6.929 in |
| Width | 198 mm | 7.795 in |
| Depth | 106 mm | 4.173 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | CEL 850 | LMR 750 | PCS 1900 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical specifications, common port
| Composite Power, RMS | 250 W |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 555-894MHz | PCS | AWS-WCS |
| License Band | CEL 850, Band Pass; USA 600, Band Pass; USA 700, Band Pass; USA 750, Band Pass | PCS 1900, Band Pass | AWS 1700, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 555–894 | 1850-1995 | 1695–1780; 2110–2200; 2305–2360 |
| Insertion Loss, typical, dB | 0.10 | 0.25 | 0.25 |
| Total Group Delay, maximum, ns | 10 | 20 | 25 |
| Return Loss, minimum, dB | 21 | 21 | 21 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 | 2,000 |
| 3rd Order PIM, maximum, dBc | -161 | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | |
| Higher Order PIM, maximum, dBc | -161 | ||
| Higher Order PIM Test Method | 2 x 20 W CW tones |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Volume | 3.7 L |
| Weight, without mounting hardware | 5.3 kg | 11.684 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
