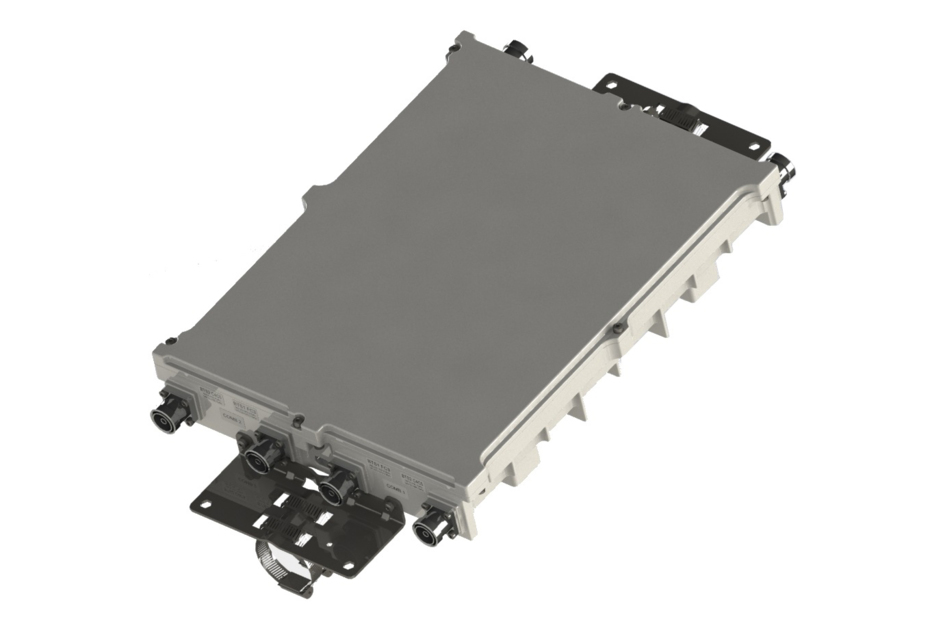

TD-PCS-1-A3-A4A5 | E15Z50P73
Twin Inband Diplexer PCS A3-A4A5, DC sense
Features and benefits
- Twin configuration
- Automatic dc switching with dc sense
- Minimal Insertion Loss
- Self-contained housing ensures highest reliability in severe environments
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Connector Interface | 7-16 DIN Female |
Dimensions
| Height | 465 mm | 18.307 in |
| Width | 365 mm | 14.37 in |
| Depth | 73 mm | 2.874 in |

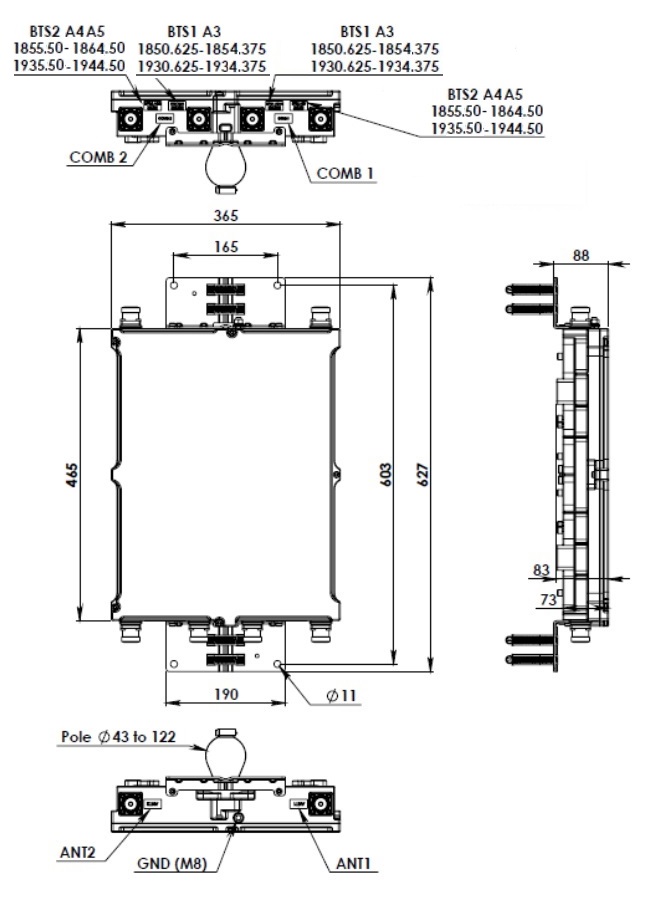

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 5th Order IMD, maximum | -153 dBc |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, rx (uplink)
| Frequency Band | 1850.625 – 1854.375 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
| Isolation, minimum | 28 dB |
| Total Group Delay, maximum | 250 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1855.50 – 1864.50 MHz |
| Isolation, minimum | 28 dB |
| Total Group Delay, maximum | 250 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1930.625 – 1934.375 MHz |
| Input Power, PEP, maximum | 100 W |
| Input Power, RMS, maximum | 3000 W |
| Total Group Delay, maximum | 210 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 1935.50 – 1944.50 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
| Return Loss, typical | 18 dB |
| Total Group Delay, maximum | 250 ns |

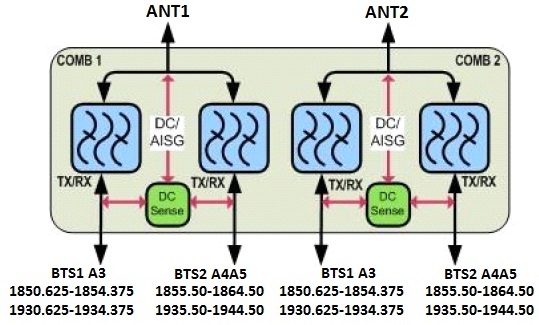

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 15.5 kg | 34.172 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Connector Interface | 7-16 DIN Female |
Dimensions
| Height | 465 mm | 18.307 in |
| Width | 365 mm | 14.37 in |
| Depth | 73 mm | 2.874 in |
Electrical specifications
| 5th Order IMD, maximum | -153 dBc |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, rx (uplink)
| Frequency Band | 1850.625 – 1854.375 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
| Isolation, minimum | 28 dB |
| Total Group Delay, maximum | 250 ns |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1855.50 – 1864.50 MHz |
| Isolation, minimum | 28 dB |
| Total Group Delay, maximum | 250 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1930.625 – 1934.375 MHz |
| Input Power, PEP, maximum | 100 W |
| Input Power, RMS, maximum | 3000 W |
| Total Group Delay, maximum | 210 ns |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, typical | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 1935.50 – 1944.50 MHz |
| Insertion Loss, typical | 0.8 dB |
| Return Loss, minimum | 18 dB |
| Return Loss, typical | 18 dB |
| Total Group Delay, maximum | 250 ns |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 15.5 kg | 34.172 lb |
