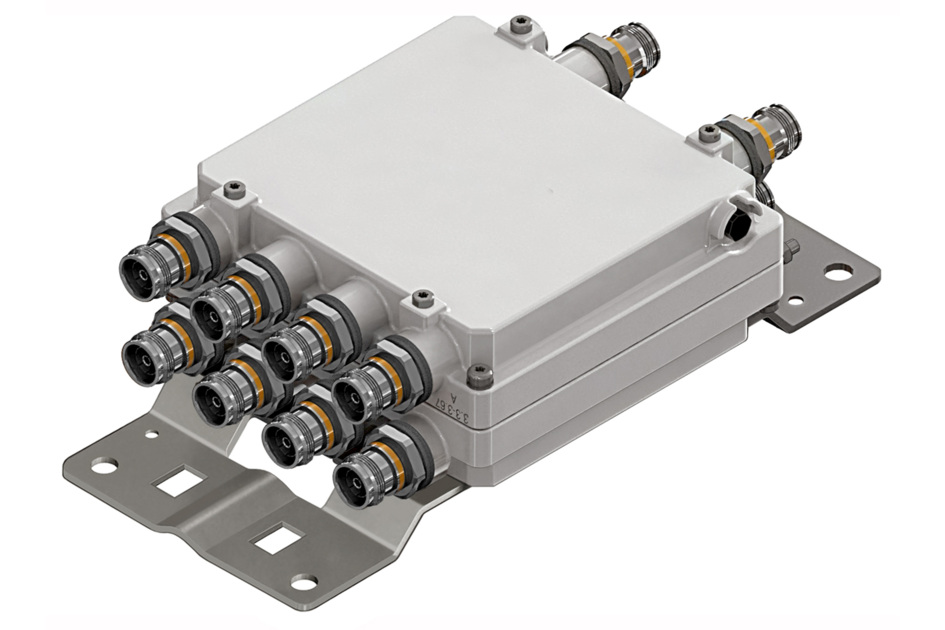

SDX3340Q-DH-43 | E14F06P80
Compact Quad Diplexer 3300-3670/3700-3980 MHz, DC on 3700-3980 MHz port, 4.3-10
Features and benefits
- Supports C-Band, DoD and CBRS bands
- Port 1 supports DoD and CBRS
- Port 2 supports C-Band
- DC/AISG bypass on C-Band port
- New 4.3-10 connectors for improved PIM performance and size reduction
- Industry leading PIM performance
- Quad configuration, 4x4 MIMO ready
- Ideal for small cell applications
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 158 mm | 6.220 in |
| Width | 166 mm | 6.535 in |
| Depth | 70 mm | 2.756 in |

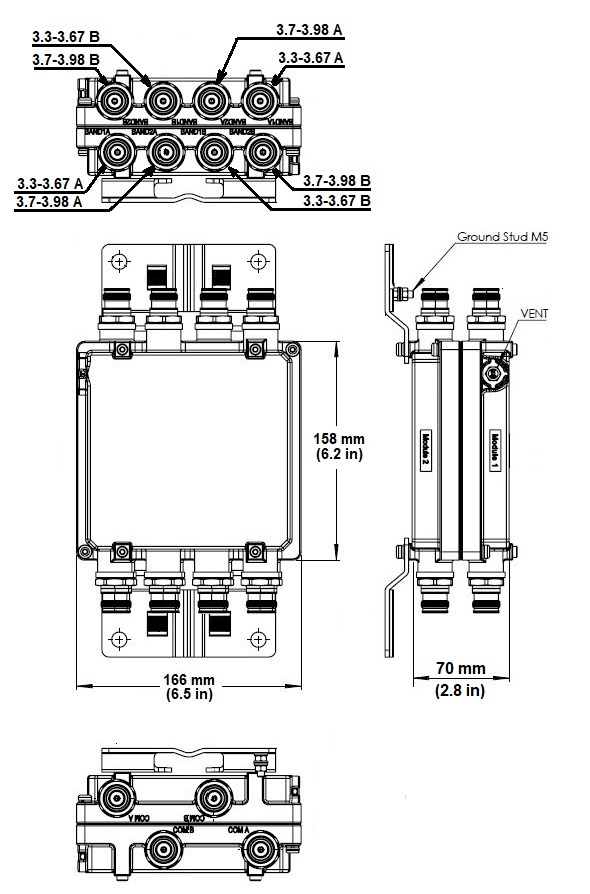

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | TDD 3500 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 2 |
| dc/AISG Pass-through, combiner | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 2 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | DoD + CBRS | C-Band |
| License Band | TDD 3500, Band Pass | TDD 3500, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 3300–3670 | 3700–3980 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 20 | 20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 35 | 35 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, minimum, dBc | -155 | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |

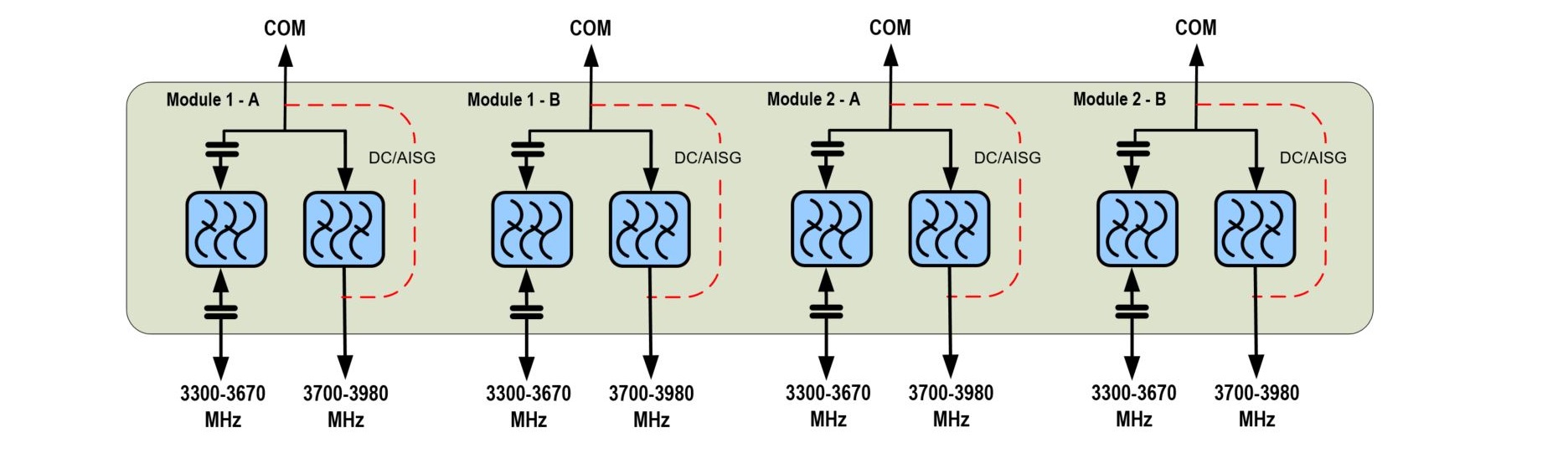

Block diagram
| Click on image to enlarge. |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 34.0 N @ 150 km/h (7.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 8.0 N @ 150 km/h (1.8 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Volume | 1.85 L |
| Weight, without mounting hardware | 3.6 kg | 7.937 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 158 mm | 6.220 in |
| Width | 166 mm | 6.535 in |
| Depth | 70 mm | 2.756 in |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | TDD 3500 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 2 |
| dc/AISG Pass-through, combiner | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 2 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | DoD + CBRS | C-Band |
| License Band | TDD 3500, Band Pass | TDD 3500, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 3300–3670 | 3700–3980 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 20 | 20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 35 | 35 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, minimum, dBc | -155 | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 34.0 N @ 150 km/h (7.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 8.0 N @ 150 km/h (1.8 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Volume | 1.85 L |
| Weight, without mounting hardware | 3.6 kg | 7.937 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
