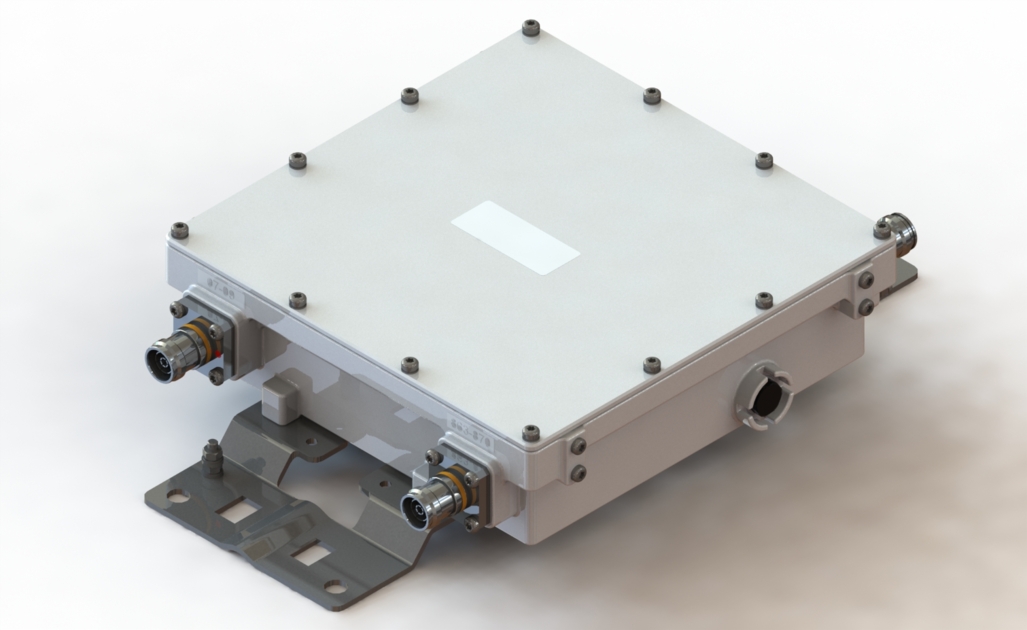

E14F06P77
Single Diplexer, 703-960/863-870 MHz, dc by pass on 703-960 band port
Features and benefits
- Designed for network Modernization, introduction of LoRa system on existing site
- New 4.3-10 connectors for improved PIM performance and size reduction
- Single configuration
- dc/AISG pass-through on low frequency ports
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 236 mm | 9.291 in |
| Width | 236 mm | 9.291 in |
| Depth | 66 mm | 2.598 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

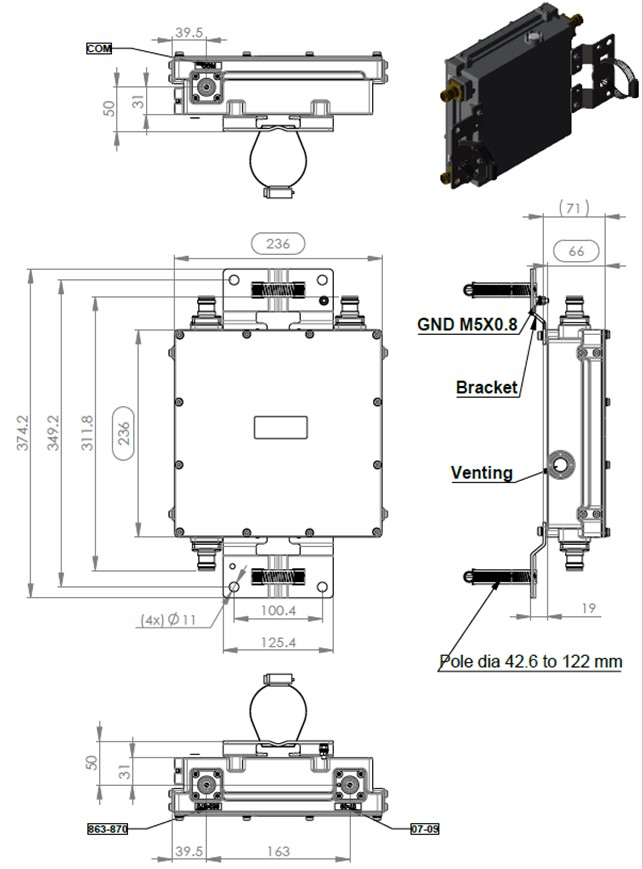

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | EU868 for LoRa system |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 |
| dc/AISG Pass-through, combiner | Branch 1 |
| dc/AISG Pass-through, demultiplexer | Branch 1 |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| License Band | APT 700, Band Pass CEL 900, Band Pass | EU868 for LoRa system |
Electrical specifications, band pass
| Frequency Range, MHz | 703–960 | 863–870 |
| Insertion Loss, typical, dB | 0.10 | 0.40 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 65 | 65 |
| Input Power, RMS, maximum, W | 250 | 1 |
| Input Power, PEP, maximum, W | 2,500 | 10 |
| 3rd Order PIM, typical, dBc | -162 | -162 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 3.7 L |
| Weight, net | 4.6 kg | 10.141 lb |
| Weight, without mounting hardware | 4 kg | 8.818 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 236 mm | 9.291 in |
| Width | 236 mm | 9.291 in |
| Depth | 66 mm | 2.598 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | EU868 for LoRa system |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 |
| dc/AISG Pass-through, combiner | Branch 1 |
| dc/AISG Pass-through, demultiplexer | Branch 1 |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| License Band | APT 700, Band Pass; CEL 900, Band Pass | EU868 for LoRa system |
Electrical specifications, band pass
| Frequency Range, MHz | 703–960 | 863–870 |
| Insertion Loss, typical, dB | 0.10 | 0.40 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 65 | 65 |
| Input Power, RMS, maximum, W | 250 | 1 |
| Input Power, PEP, maximum, W | 2,500 | 10 |
| 3rd Order PIM, typical, dBc | -162 | -162 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 3.7 L |
| Weight, net | 4.6 kg | 10.141 lb |
| Weight, without mounting hardware | 4 kg | 8.818 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
