E14F06P46

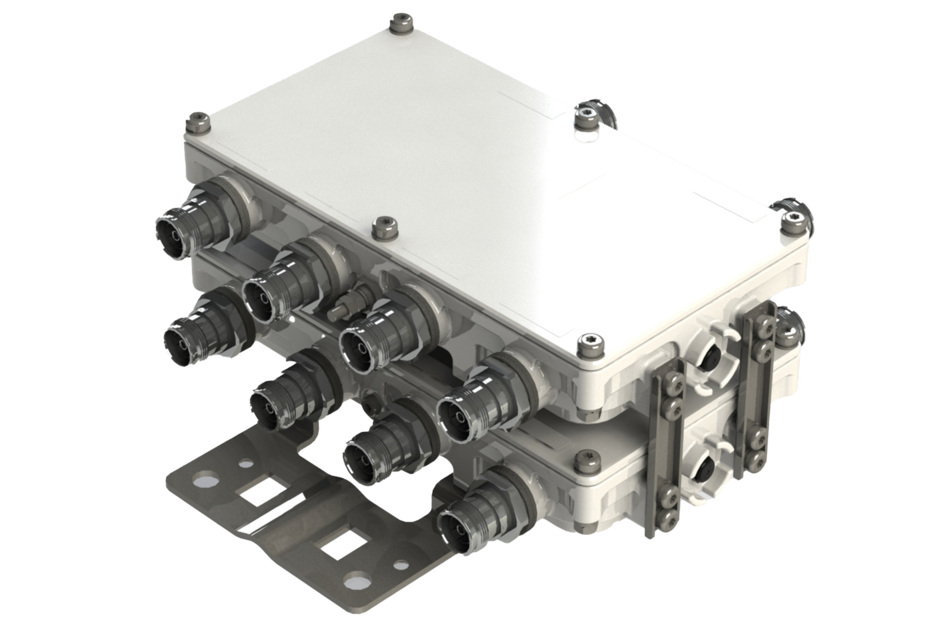

Ultra Compact Quad Diplexer, 3400–3600/3700–4100 MHz, DC/AISG Bypass on low frequency port, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- New 4.3-10 connectors for improved PIM performance and size reduction
- dc/AISG blocking on all ports
- New Combining Solution to introduce 5G, 3.5GHz band
- Compact form factor with reduced size and weight
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 92 mm | 3.622 in |
| Width | 220 mm | 8.661 in |
| Depth | 121 mm | 4.764 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Path | Branch 1 |
| dc/AISG Pass-through, combiner | Branch 1 |
| dc/AISG Pass-through, demultiplexer | Branch 1 |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 3400-3600 | PORT 2 3700-4100 |
Electrical specifications, band pass
| Frequency Range, MHz | 3400–3600 | 3700–4100 |
| Insertion Loss, typical, dB | 0.40 | 0.40 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 35 | 35 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, maximum, dBc | -150 | -150 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.45 L |
| Weight, net | 4.8 kg | 10.582 lb |
| Weight, without mounting hardware | 4.5 kg | 9.921 lb |
