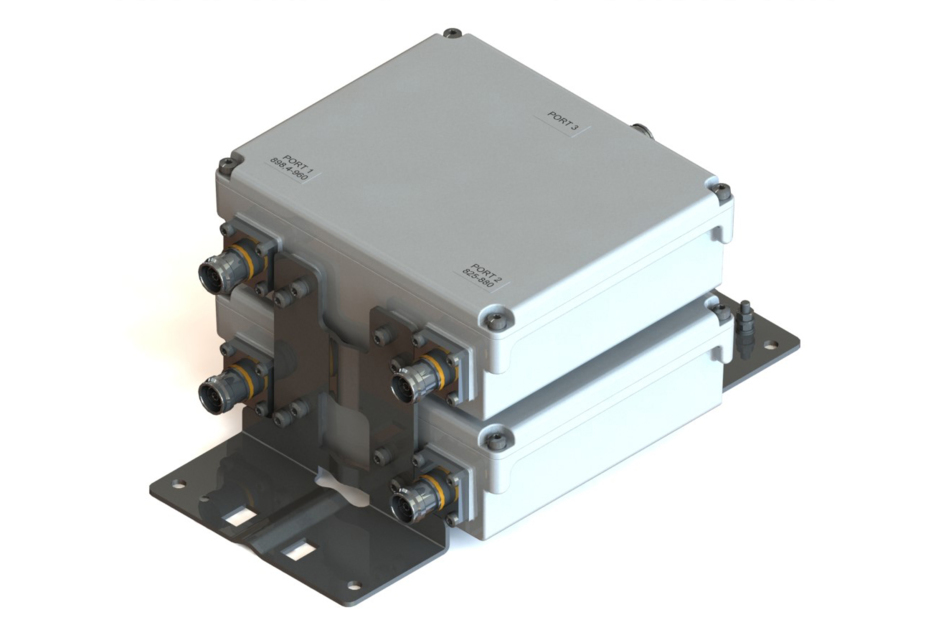

E12F03P16
CS-DPX 824-880/898.4-960 DC ALL, RJ40
Features and benefits
- Industry leading PIM performance
- Twin configuration
- dc/AISG pass-through on all frequency ports
- Additional Rejection in 880-890 MHz band 40 dB
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 207 mm | 8.15 in |
| Width | 175 mm | 6.89 in |
| Depth | 143 mm | 5.63 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

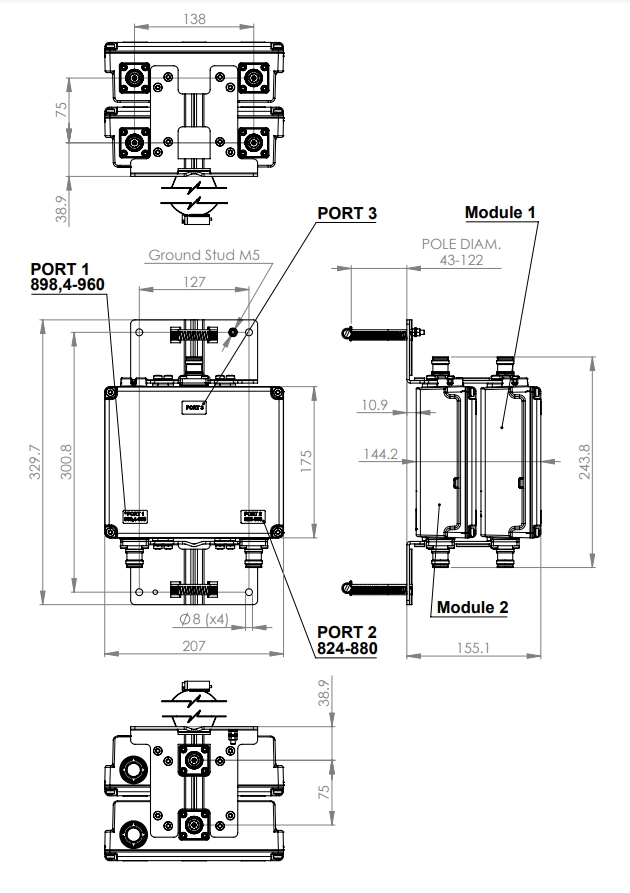

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | CEL 850 | CEL 900 | DCS 1800 | IMT 2100 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 waveform |
Electrical specifications, aisg
| AISG Pass-through Current, maximum | 3 A |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 2 850 | PORT 1 900 |
| License Band | CEL 850, Band Pass | CEL 900, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 825–880 | 898.4–960 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 50 | 90 |
| Total Group Delay, typical, ns | 45 | 20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 |
| Input Power, RMS, maximum, W | 250 | 250 |
| Input Power, PEP, maximum, W | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -153 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers | |
| 7th Order PIM, typical, dBc | -153 | |
| 7th Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 898.4–960 | 825–880 |
| Attenuation, minimum, dB | 50.0 | 40.0 |

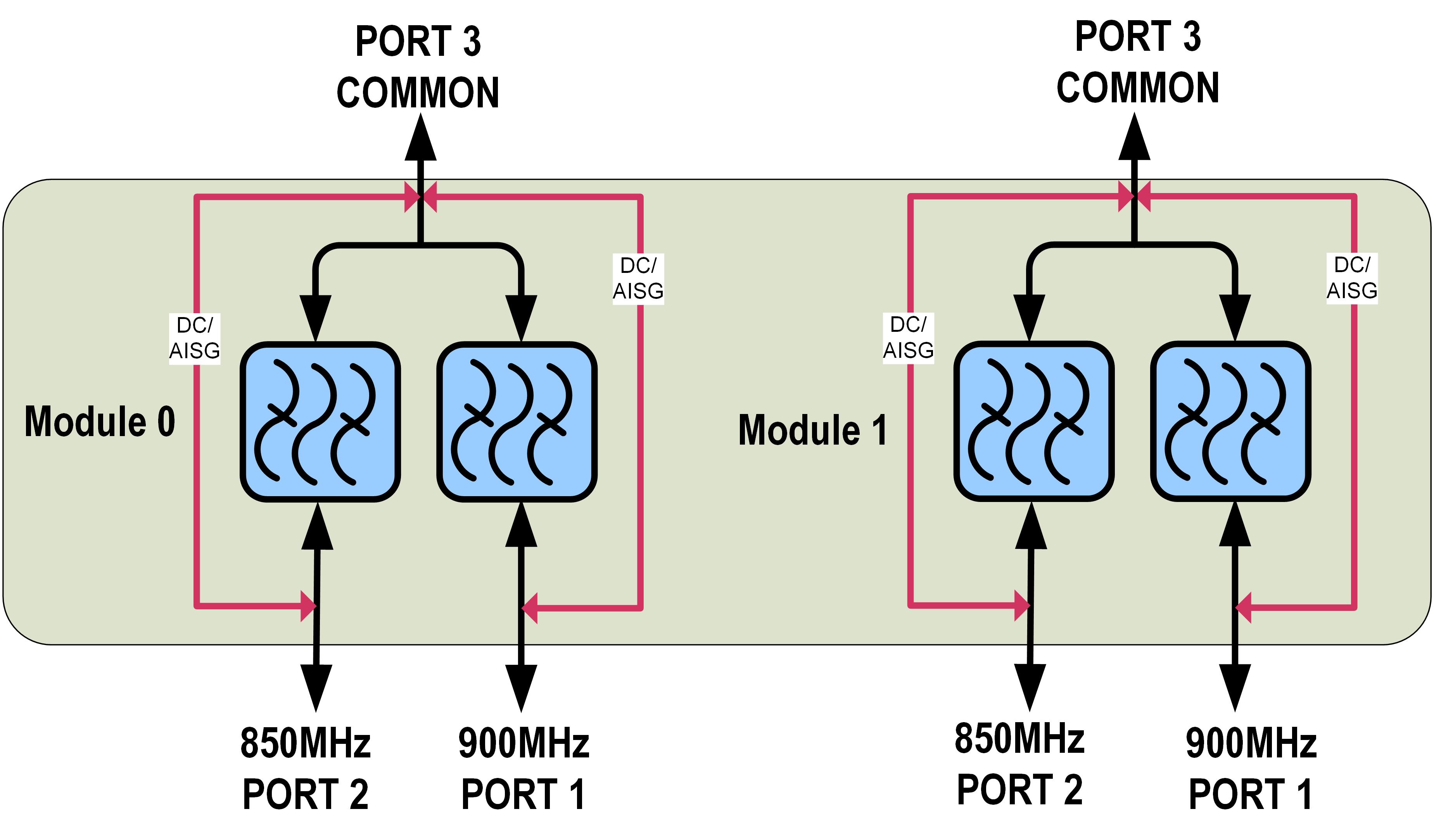

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.2 L |
| Weight, net | 8 kg | 17.637 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 207 mm | 8.15 in |
| Width | 175 mm | 6.89 in |
| Depth | 143 mm | 5.63 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | CEL 850 | CEL 900 | DCS 1800 | IMT 2100 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 waveform |
Electrical specifications, aisg
| AISG Pass-through Current, maximum | 3 A |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 2 850 | PORT 1 900 |
| License Band | CEL 850, Band Pass | CEL 900, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 825–880 | 898.4–960 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 50 | 90 |
| Total Group Delay, typical, ns | 45 | 20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 |
| Input Power, RMS, maximum, W | 250 | 250 |
| Input Power, PEP, maximum, W | 2,500 | 2,500 |
| 3rd Order PIM, typical, dBc | -153 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers | |
| 7th Order PIM, typical, dBc | -153 | |
| 7th Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 898.4–960 | 825–880 |
| Attenuation, minimum, dB | 50.0 | 40.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.2 L |
| Weight, net | 8 kg | 17.637 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
