E11F02P17

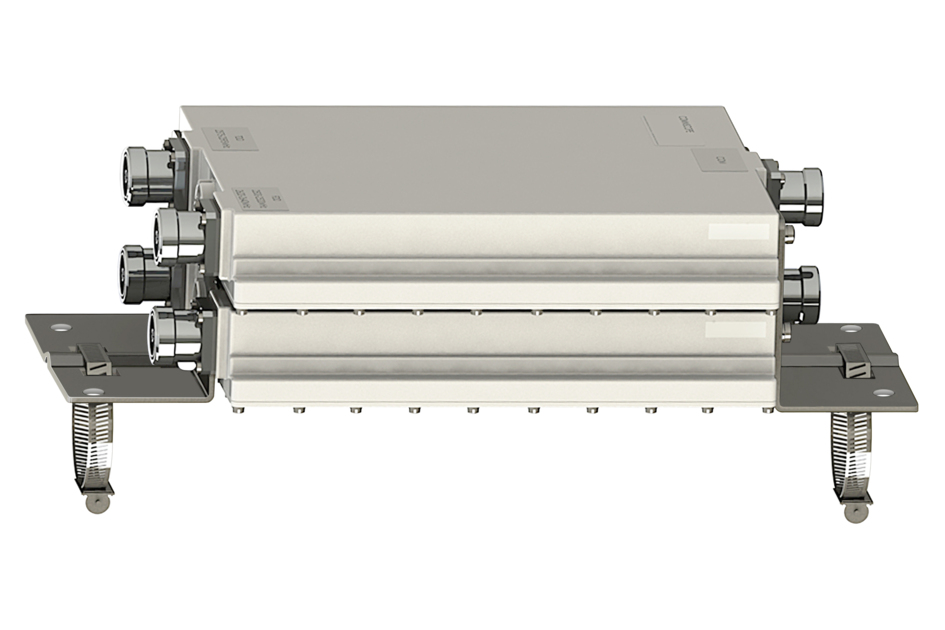

Twin Diplexer, FDD/TDD 2600, dc pass on all ports
Features and benefits
- Twin configuration
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC2526 |
| Color | Gray |
| Common Port Label | COM |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 270 mm | 10.63 in |
| Width | 239 mm | 9.409 in |
| Depth | 105 mm | 4.134 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

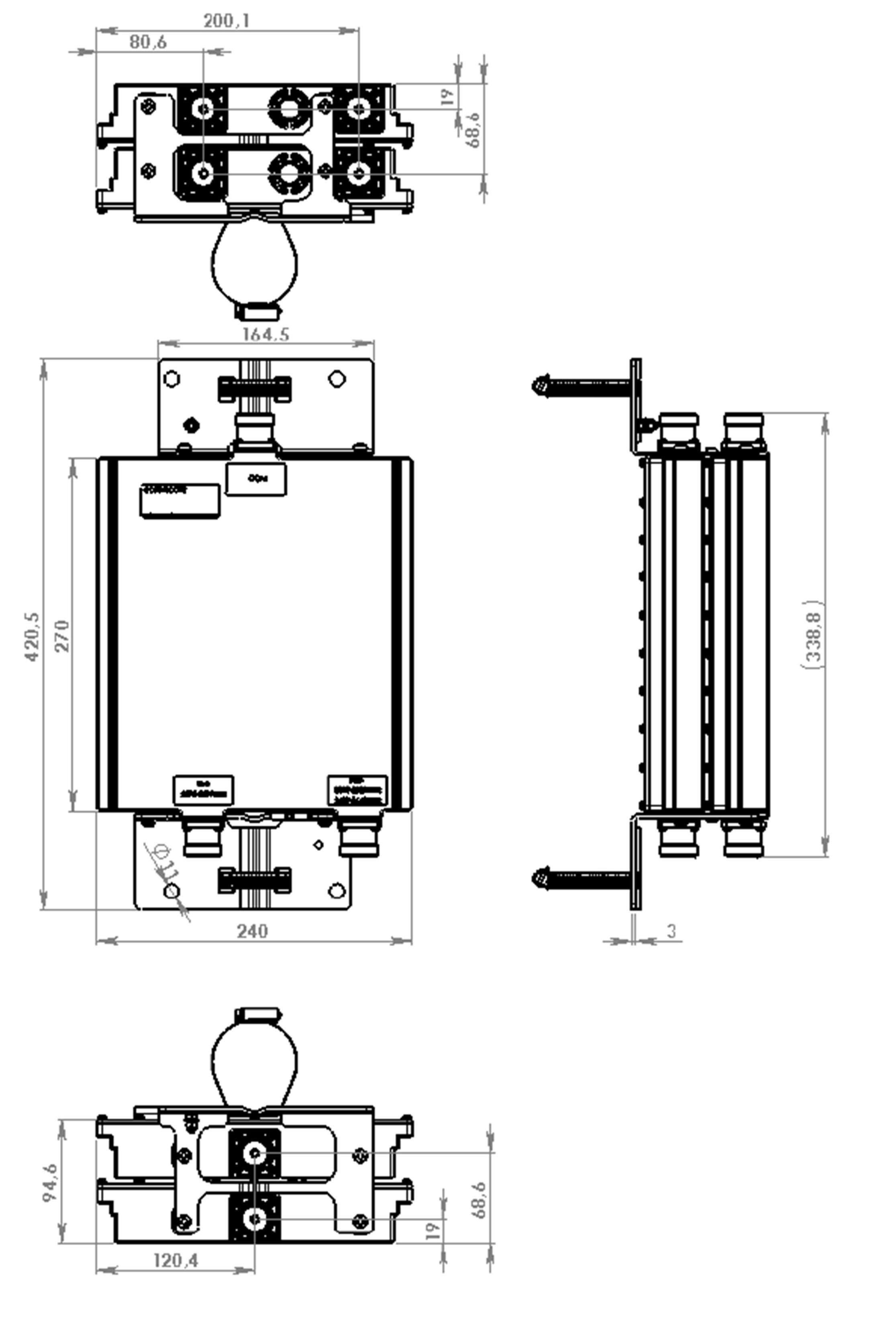

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | IMT 2600 | TDD 2600 |
Electrical specifications, common port
| Composite Power, RMS | 200 W |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | FDD 2500-2520/2620-2640 | TDD 2575-2595 |
| License Band | IMT 2600, Band Pass | TDD 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2520 2620–2640 | 2575–2595 |
| Insertion Loss, maximum, dB | 0.90 | 1.20 |
| Insertion Loss, typical, dB | 0.70 | 1.00 |
| Return Loss, minimum, dB | 18 | 18 |
| Isolation, minimum, dB | 90 | 90 |

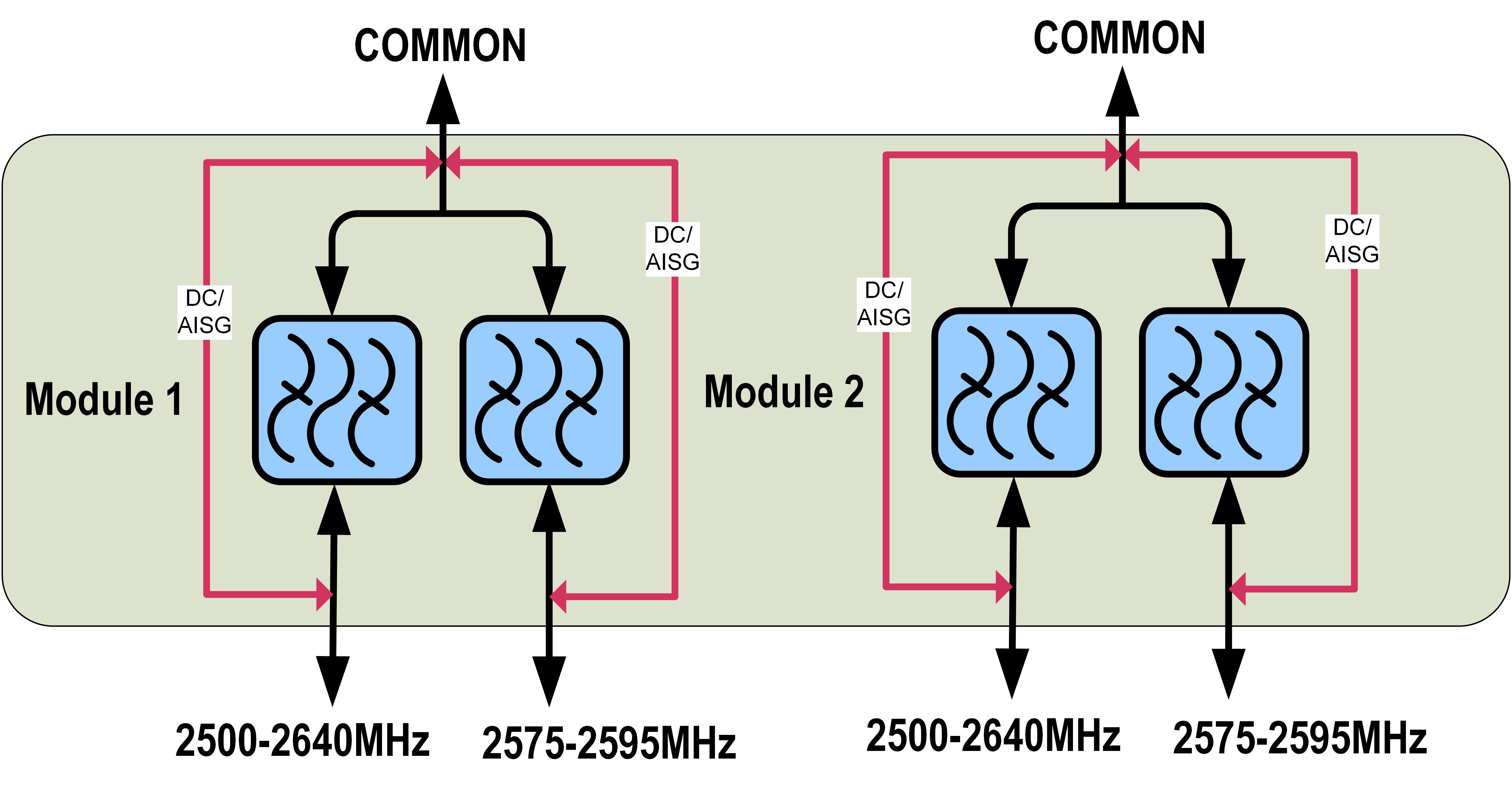

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 6.1 L |
| Weight, net | 8.6 kg | 18.96 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC2526 |
| Color | Gray |
| Common Port Label | COM |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 270 mm | 10.63 in |
| Width | 239 mm | 9.409 in |
| Depth | 105 mm | 4.134 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | IMT 2600 | TDD 2600 |
Electrical specifications, common port
| Composite Power, RMS | 200 W |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | FDD 2500-2520/2620-2640 | TDD 2575-2595 |
| License Band | IMT 2600, Band Pass | TDD 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2520; 2620–2640 | 2575–2595 |
| Insertion Loss, maximum, dB | 0.90 | 1.20 |
| Insertion Loss, typical, dB | 0.70 | 1.00 |
| Return Loss, minimum, dB | 18 | 18 |
| Isolation, minimum, dB | 90 | 90 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 6.1 L |
| Weight, net | 8.6 kg | 18.96 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
