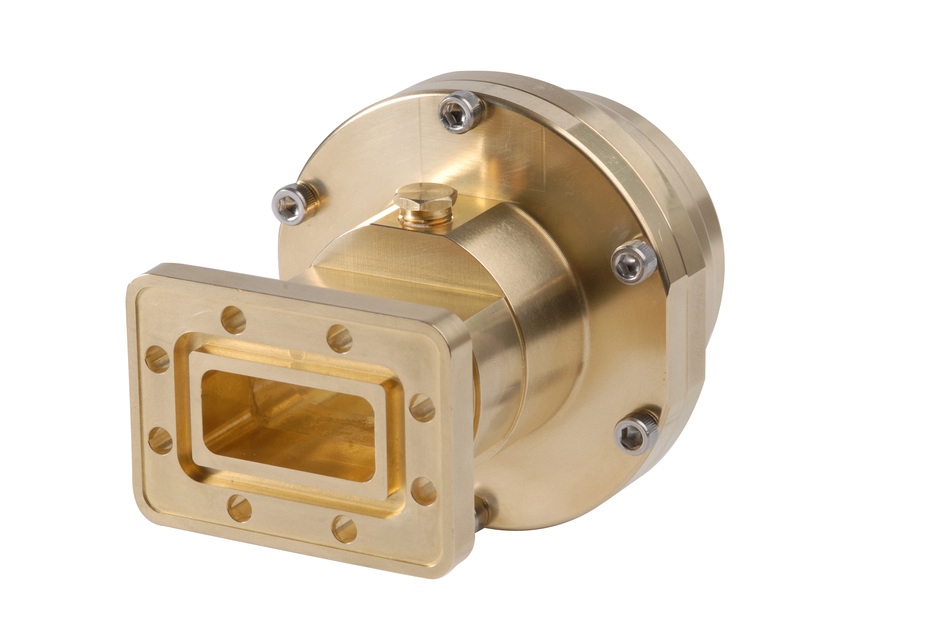

252SEM

Base product: WAVEGUIDE-CONNECTORS

Fixed-tuned PDR70 for elliptical waveguide 52

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Straight, fixed-tuned
Inner Contact Plating Unplated
Interface PDR70
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 88.9 mm | 3.5 in
Length 114.554 mm | 4.51 in
Transition Length 75.692 mm | 2.98 in
Waveguide Size WR137 | WG14 | R70

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 5.0 – 6.425 GHz
Peak Power at Frequency, maximum 92.00 kW @ 6.00 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 1.8 kg | 3.968 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Straight, fixed-tuned
Inner Contact Plating Unplated
Interface PDR70
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 88.9 mm | 3.5 in
Length 114.554 mm | 4.51 in
Transition Length 75.692 mm | 2.98 in
Waveguide Size WR137 | WG14 | R70

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 5.0 – 6.425 GHz
Peak Power at Frequency, maximum 92.00 kW @ 6.00 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 1.8 kg | 3.968 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
