2132SC

Base product: WAVEGUIDE-CONNECTORS

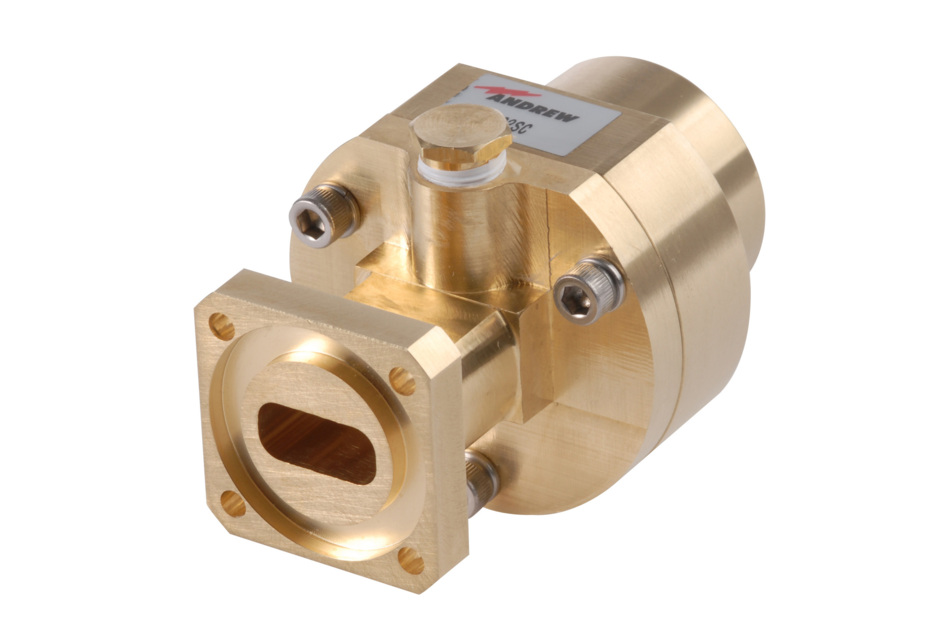

Fixed-tuned WR75 Pressurizable Cover Flange for elliptical waveguide 132

Finish making your selections or clear them to view relevant specifications.
Find a partner

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Straight, fixed-tuned
Inner Contact Plating Unplated
Interface WR75 Cover
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 52.324 mm | 2.06 in
Length 69.85 mm | 2.75 in
Transition Length 35.814 mm | 1.41 in
Waveguide Size WR75 | WG17 | R120

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 13.75 – 14.50 GHz
Peak Power at Frequency, maximum 36.60 kW @ 14.70 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 0.54 kg | 1.19 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Straight, fixed-tuned
Inner Contact Plating Unplated
Interface WR75 Cover
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 52.324 mm | 2.06 in
Length 69.85 mm | 2.75 in
Transition Length 35.814 mm | 1.41 in
Waveguide Size WR75 | WG17 | R120

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 13.75 – 14.50 GHz
Peak Power at Frequency, maximum 36.60 kW @ 14.70 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 0.54 kg | 1.19 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

2132SC Product specifications
2132SC Product specifications (Comprehensive)
