7651928-01
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

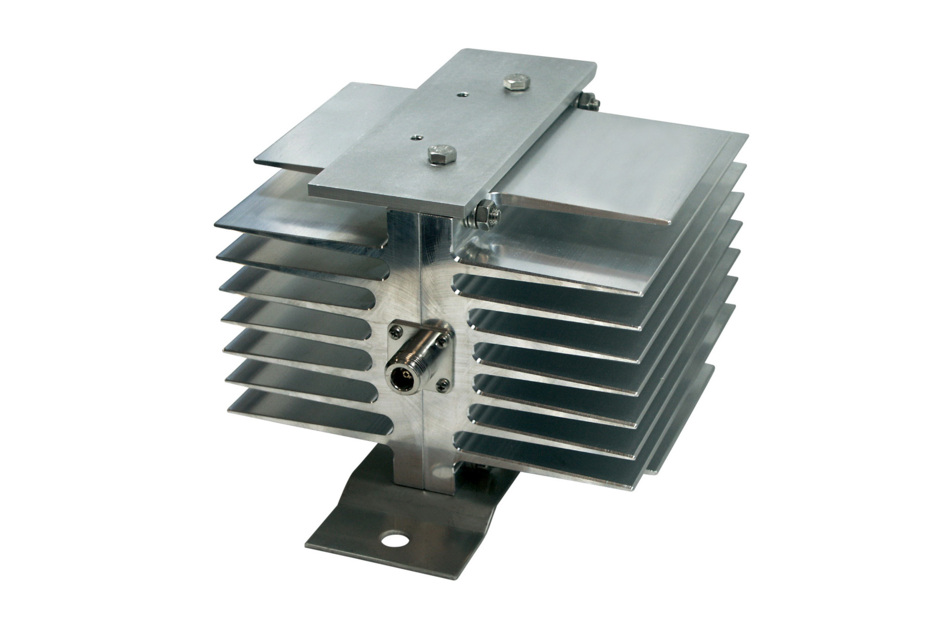

N-Type Female High Power Termination Load, 70–3000 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General specifications
| Device Type | Termination Load |
| Color | Silver |
| Interface | N Female |
Electrical specifications
| Return Loss, minimum | 20 dB |
| Average Power, maximum | 175 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 70 – 3000 MHz |
| Peak Power, maximum | 1.5 kg/mm |
| VSWR | 1.22 |
Derating curve
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -33 °C to +65 °C (-27.4 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP30 |
Packaging and weights
| Height, packed | 242 mm | 9.528 in |
| Width, packed | 165 mm | 6.496 in |
| Length, packed | 130 mm | 5.118 in |
| Weight, gross | 3.7 kg | 8.157 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General specifications
| Device Type | Termination Load |
| Color | Silver |
| Interface | N Female |
Electrical specifications
| Return Loss, minimum | 20 dB |
| Average Power, maximum | 175 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 70 – 3000 MHz |
| Peak Power, maximum | 1.5 kg/mm |
| VSWR | 1.22 |
Environmental specifications
| Operating Temperature | -33 °C to +65 °C (-27.4 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP30 |
Packaging and weights
| Height, packed | 242 mm | 9.528 in |
| Width, packed | 165 mm | 6.496 in |
| Length, packed | 130 mm | 5.118 in |
| Weight, gross | 3.7 kg | 8.157 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
