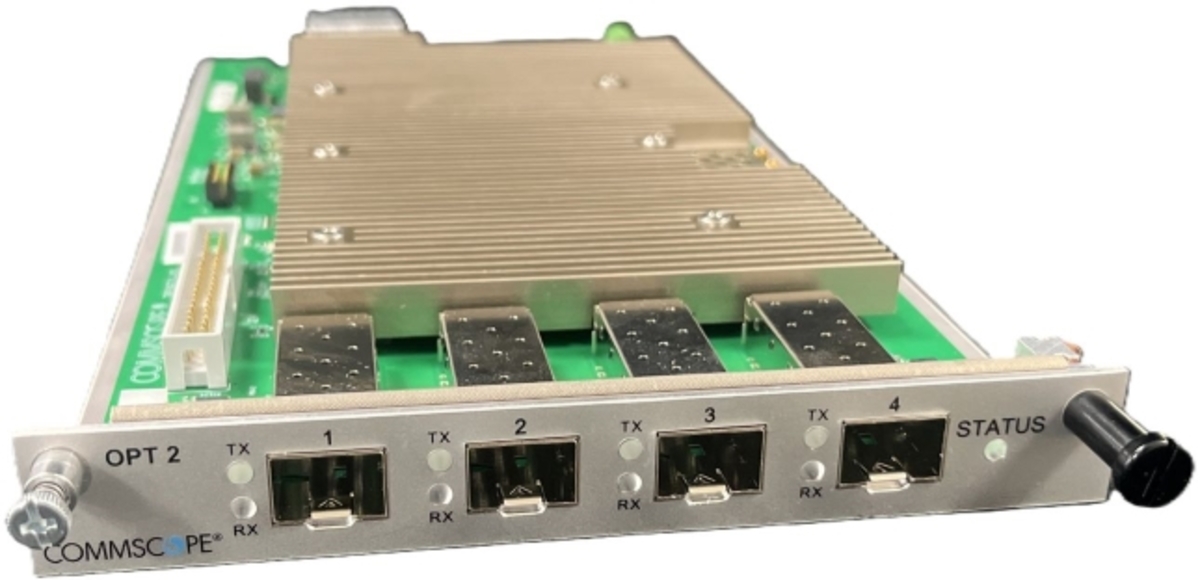

7845476-00 | OPT2

ERA® Optical Transport Card

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
  • Up to 800 MHz total bandwidth on one fiber to APs supporting 25G connection
  • Can only be used for 2-nd generation Access Points (UAP2, CAP L2/M2/H2)
  • Optical port type SFP28
  • 4 x 25G ports
  • 25 Gbps optical line rate
  • Max. 800 MHz RF bandwidth per port
  • Up to 4 OPT2 cards per WCS-2/-4 chassis

Product classification

Product Type Card
Product Brand ERA®

General specifications

Device Type Card
General Alarm Integrated into management system
Management Interface Integrated into management system
Note Detailed Product Specifications are available. Please contact your local ANDREW representative.
Required Subrack Version WCS-2 SUBRACK (7635443-03) | WCS-2 SUBRACK (A7635443-03) | WCS-4 SUBRACK (7635442-03) | WCS-4 SUBRACK (A7635442-03) | WCS2 SUBRACK, INTEGRATED DC PSU (7844067-02) | WCS2 SUBRACK, INTEGRATED DC PSU (A7844067-02) | WCS4 SUBRACK, INTEGRATED DC PSU (7844068-02) | WCS4 SUBRACK, INTEGRATED DC PSU (A7844068-02)

Dimensions

Height 20 mm | 0.787 in
Width 145 mm | 5.709 in
Depth 300 mm | 11.811 in

Packaging and weights

Height, packed 210 mm | 8.268 in
Width, packed 63 mm | 2.48 in
Depth, packed 362 mm | 14.252 in
Weight, net 0.28 kg | 0.617 lb

Product classification

Product Type Card
Product Brand ERA®

General specifications

Device Type Card
General Alarm Integrated into management system
Management Interface Integrated into management system
Note Detailed Product Specifications are available. Please contact your local ANDREW representative.
Required Subrack Version WCS-2 SUBRACK (7635443-03) | WCS-2 SUBRACK (A7635443-03) | WCS-4 SUBRACK (7635442-03) | WCS-4 SUBRACK (A7635442-03) | WCS2 SUBRACK, INTEGRATED DC PSU (7844067-02) | WCS2 SUBRACK, INTEGRATED DC PSU (A7844067-02) | WCS4 SUBRACK, INTEGRATED DC PSU (7844068-02) | WCS4 SUBRACK, INTEGRATED DC PSU (A7844068-02)

Dimensions

Height 20 mm | 0.787 in
Width 145 mm | 5.709 in
Depth 300 mm | 11.811 in

Packaging and weights

Height, packed 210 mm | 8.268 in
Width, packed 63 mm | 2.48 in
Depth, packed 362 mm | 14.252 in
Weight, net 0.28 kg | 0.617 lb
