7834569-00

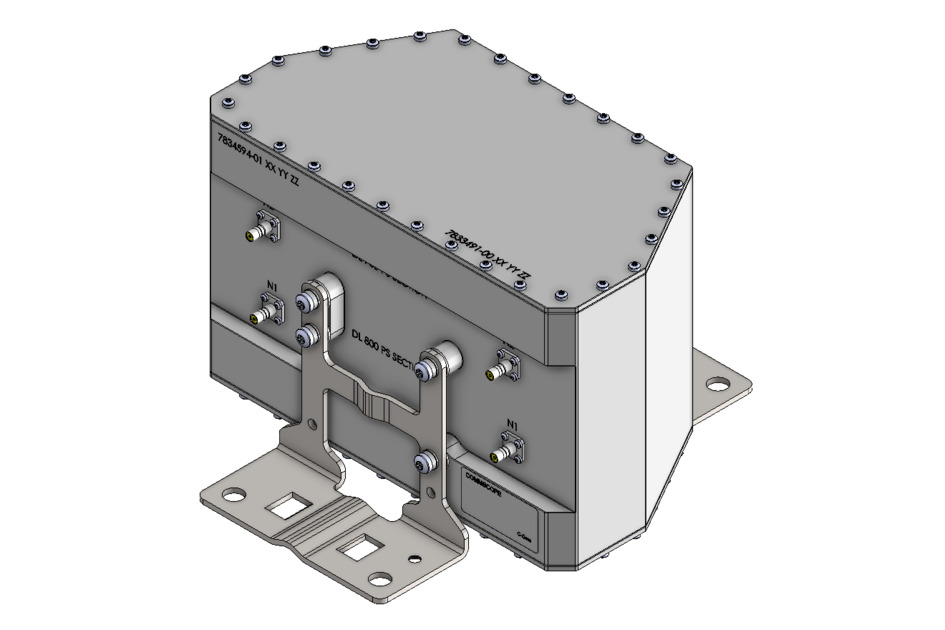

CAP M passband filter for 700/800 DL PS
Specifications
Product classification
| Product Type | Filter |
General specifications
| Color | White (RAL 9010) |
| RF Connector Interface | QMA Female |
| RF Inputs, quantity | 2 |
| RF Outputs, quantity | 2 |
Dimensions
| Height | 165.7 mm | 6.524 in |
| Width | 238 mm | 9.370 in |
| Depth | 244 mm | 9.606 in |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, band pass
| Sub-module | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 758–775 | 851–869 |
| Insertion Loss, maximum, dB | 1.60 | 1.60 |
| Insertion Loss, typical, dB | 0.80 | 0.90 |
Electrical specifications, band reject
| Sub-module | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 777–849 849–2690 | 380–777 777–849 896–2690 |
| Attenuation, typical, dB | 31.0 | 31.0 |
Environmental specifications
| Operating Temperature | -33 °C to +52 °C (-27.4 °F to + 125.6 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Ingress Protection Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Weight, without mounting hardware | 6 kg | 13.228 lb |
Product classification
| Product Type | Filter |
General specifications
| Color | White (RAL 9010) |
| RF Connector Interface | QMA Female |
| RF Inputs, quantity | 2 |
| RF Outputs, quantity | 2 |
Dimensions
| Height | 165.7 mm | 6.524 in |
| Width | 238 mm | 9.370 in |
| Depth | 244 mm | 9.606 in |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, band pass
| Sub-module | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 758–775 | 851–869 |
| Insertion Loss, maximum, dB | 1.60 | 1.60 |
| Insertion Loss, typical, dB | 0.80 | 0.90 |
Electrical specifications, band reject
| Sub-module | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 777–849; 849–2690 | 380–777; 777–849; 896–2690 |
| Attenuation, typical, dB | 31.0 | 31.0 |
Environmental specifications
| Operating Temperature | -33 °C to +52 °C (-27.4 °F to + 125.6 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Ingress Protection Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Weight, without mounting hardware | 6 kg | 13.228 lb |
